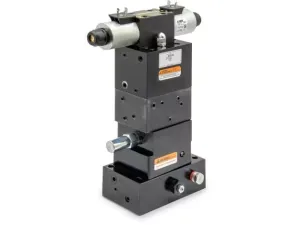

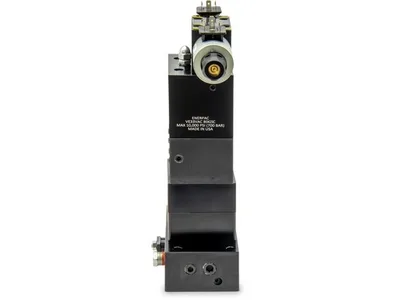

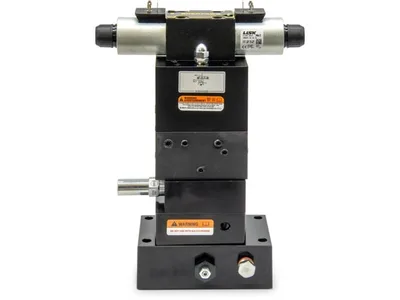

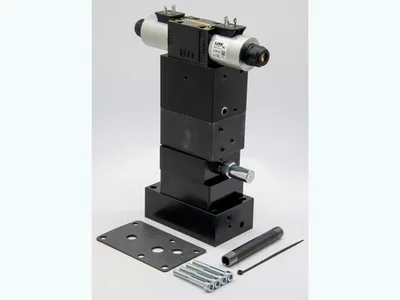

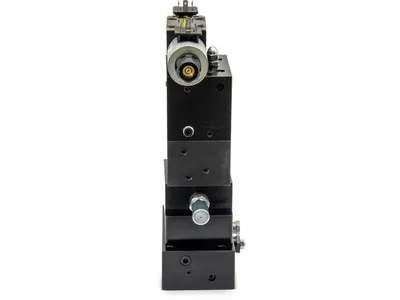

Enerpac VE33VAC 700 bar Directional Valve

Enerpac VE33VAC; 700 bar (10,000 psi), 17 L/min, 24 VDC solenoid-operated pump-mounted 3-way 3-position directional control valve with venturi return assist.

EnerpacMFR # VE33VACSKU # YLSY932DHBYKEZZ

Flow Capacity17 l/min (4.5 gal/min)

Mounting LocationPump Mounted

Country of OriginUnited States

Maximum Operating Pressure700 bar (10,000 psi)

Product TypeDirectional Control Valve

FunctionAdvance / Hold / Retract

Have questions?Chat on WhatsApp

About This Product

The VE33VAC is a pump-mounted, solenoid-operated 3-way, 3-position, tandem center directional control valve from the Enerpac VE series. It provides advance / hold / retract operation of single-acting cylinders. Maximum operating pressure is 700 bar (10,000 psi), flow capacity is 17 L/min (4.5 gal/min), and the supply voltage is 24 VDC. Weight is 20.3 lb. The venturi return assist improves the retraction speed of single-acting and load-return cylinders by 3X. It can be retrofitted to most Enerpac pumps.

Features and Benefits

Advance / hold / retract operation of single-acting cylinders
Venturi return assist improves retraction speed by 3X
Electric (solenoid) operation, 24 VDC
Pump mounting retrofits most Enerpac pumps
User-adjustable relief valves for easy working pressure setting

Enerpac VE33VAC

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Flow Capacity17 l/min (4.5 gal/min)

Mounting LocationPump Mounted

Country of OriginUnited States

Maximum Operating Pressure700 bar (10,000 psi)

Valve Configuration3-Way, 3 Position, Tandem Center, Venturi Return Assist

Product TypeDirectional Control Valve

FunctionAdvance / Hold / Retract

Cylinder CompatibilitySingle-Acting

SeriesVE

Valve Operation TypeSolenoid

Product LineIndustrial Tools, Workholding Tools

Weight20.3 lbs

Voltage24 VCC

Documents & CAD

Series documents 3· shared by this product series

Instruction ManualElectrically-Operated, Vacuum-Assisted Control ValvesPDF·382 KB·English

Repair Parts SheetElectrically-Operated, Vacuum-Assisted Control ValvesPDF·2.0 MB·English

BrochureVC-VE-VM-Series Directional Control Valves; EnglishPDF·1.2 MB
