How can I get a price quote for Enerpac VE32?

You can request a fast quote for Enerpac VE32 from Yılsa Engineering. Reference part number CEY-55221B143006. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac VE32 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac VE32 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac VE32?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

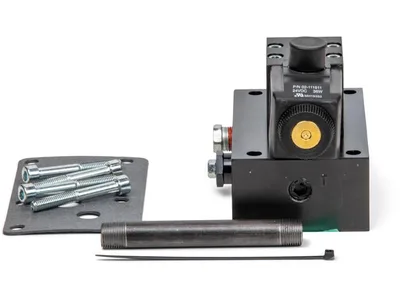

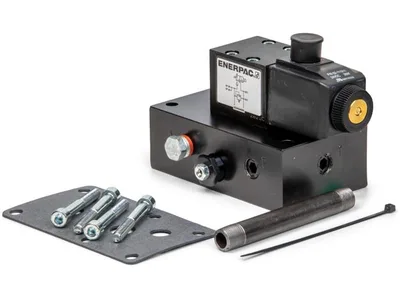

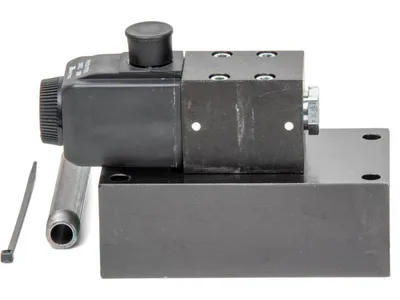

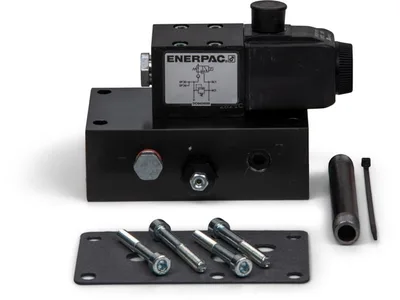

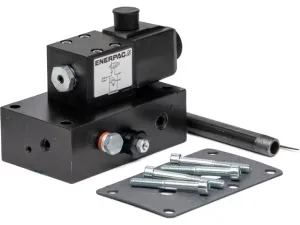

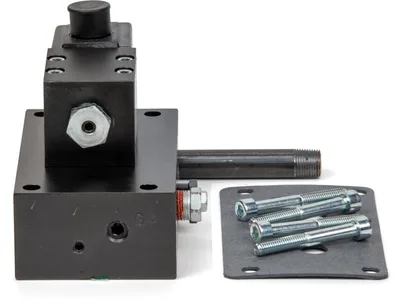

Enerpac VE32 700 bar Solenoid Directional Valve

Enerpac VE32; pump mounted solenoid directional control valve, 3-way 2-position, 700 bar (10,000 psi), 17 L/min, 24 V DC.

EnerpacMFR # VE32SKU # CEY-55221B143006

Flow Capacity17 l/min (4.5 gal/min)

Mounting LocationPump Mounted

Country of OriginUnited States

Maximum Operating Pressure700 bar (10,000 psi)

Valve Configuration3-Way, 2-Position

Product TypeDirectional Control Valve

Have questions?Chat on WhatsApp

About This Product

VE32 is a pump mounted, solenoid operated 3-way, 2-position directional control valve providing advance / hold / retract operation of single-acting cylinders. Maximum operating pressure is 700 bar (10,000 psi), flow capacity is 17 L/min (4.5 gal/min) and supply voltage is 24 V DC. Weighing 3.9 kg (8.7 lb), the valve is compatible with the ZCP3 pendant. Pump mounting retrofits on most Enerpac pumps. User adjustable relief valves allow the working pressure to be set easily. It is used in industrial and workholding applications where single-acting cylinders are controlled remotely.

Features and Benefits

Advance / hold / retract operation of single-acting cylinders
Solenoid operation, 24 V DC
700 bar (10,000 psi) maximum operating pressure, 17 L/min flow
Retrofits on most Enerpac pumps
User adjustable relief valves for easy pressure setting
Compatible with the ZCP3 pendant

Enerpac VE32

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Flow Capacity17 l/min (4.5 gal/min)

Mounting LocationPump Mounted

Country of OriginUnited States

Maximum Operating Pressure700 bar (10,000 psi)

Valve Configuration3-Way, 2-Position

Product TypeDirectional Control Valve

FunctionAdvance / Hold / Retract

Cylinder CompatibilitySingle-Acting

SeriesVE

Valve Operation TypeSolenoid

Product LineIndustrial Tools, Workholding Tools

Weight3,9 kg (8.7 lbs)

Voltage24 VCC

Documents & CAD

For this product 1

Instruction ManualElectrically Operated Control ValvesPDF·3.2 MB 4 languages· in one file

Series documents 1· shared by this product series

BrochureVC-VE-VM-Series Directional Control Valves; EnglishPDF·1.2 MB
