How can I get a price quote for Enerpac VC20?

You can request a fast quote for Enerpac VC20 from Yılsa Engineering. Reference part number CEY-0681555D76CE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac VC20 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac VC20 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac VC20?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

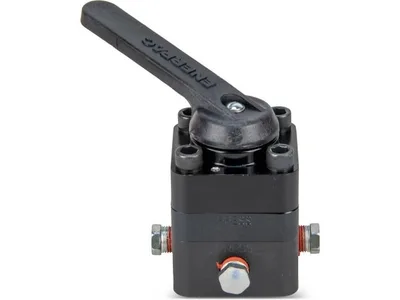

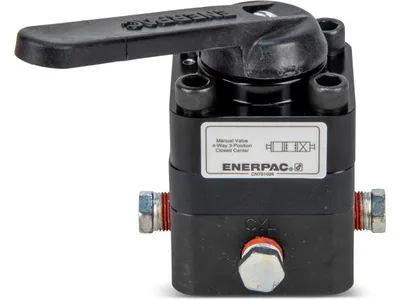

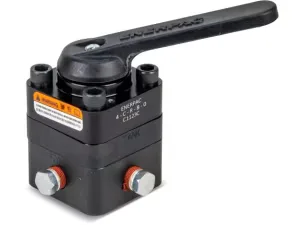

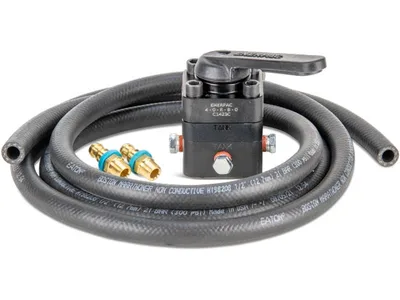

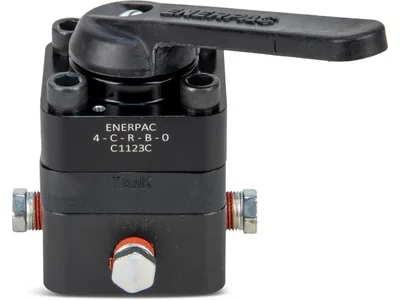

Enerpac VC20 700 bar Directional Control Valve

Enerpac VC20; 700 bar (10,000 psi), 17 L/min, remote mounted manual 4-way, 3-position closed center directional control valve for double-acting cylinders.

EnerpacMFR # VC20SKU # CEY-0681555D76CE

Flow Capacity17 l/min (4.5 gal/min)

Mounting LocationRemote Mounted

Country of OriginUnited States

Maximum Operating Pressure700 bar (10,000 psi)

Valve Configuration4-Way, 3-Position, Closed Center

Product TypeDirectional Control Valve

Have questions?Chat on WhatsApp

About This Product

The VC20 is a remote mounted, manually operated directional control valve from the VC Series. It is a 4-way, 3-position, closed center design for use with double-acting cylinders, providing Advance / Hold / Retract operation. Maximum operating pressure is 700 bar (10,000 psi) and flow capacity is 17 L/min (4.5 gal/min). Weight is 2.9 kg (6.4 lb). It is used in industrial and workholding applications where double-acting cylinders are directed manually. For applications that require positive load holding, VC and VM Series valves are available with a pilot-operated check valve option.

Features and Benefits

Advance / Hold / Retract operation for use with double-acting cylinders
700 bar (10,000 psi) maximum operating pressure
17 L/min (4.5 gal/min) flow capacity
4-way, 3-position, closed center valve design
Remote mounting with manual operation
Pilot-operated check valve option for positive load holding (VC and VM Series)

Enerpac VC20

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Flow Capacity17 l/min (4.5 gal/min)

Mounting LocationRemote Mounted

Country of OriginUnited States

Maximum Operating Pressure700 bar (10,000 psi)

Valve Configuration4-Way, 3-Position, Closed Center

Product TypeDirectional Control Valve

FunctionAdvance / Hold / Retract

Cylinder CompatibilityDouble-Acting

SeriesVC

Valve Operation TypeManual

Model TypeDouble-Acting, 4-Way, 3-Position, Closed Center

Product LineIndustrial Tools, Workholding Tools

Weight2,9 kg (6.4 lbs)

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualManually Operated Control Valves, VM/VC-3/3L/4/4L/15/15L/20/20L, VM33/33L/43/43LPDF·4.5 MB 4 languages· in one file

Repair Parts SheetValve - ManualPDF·478 KB·English

BrochureVC-VE-VM-Series Directional Control Valves; EnglishPDF·1.2 MB

Document3 and 4-Way Manual Directional ValvesPDF·31 KB·English

CAD Files 3

3D Model
