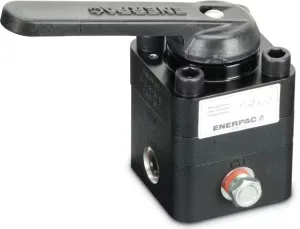

Enerpac VC15L 700 bar Locking Directional Valve

Enerpac VC15L; 700 bar (10,000 psi), 17 L/min, 3-way 3-position closed center manual remote mounted locking directional control valve.

EnerpacMFR # VC15LSKU # CEY-7B4B2D99995B

Flow Capacity17 l/min (4.5 gal/min)

Mounting LocationRemote Mounted

Country of OriginUnited States

Maximum Operating Pressure700 bar (10,000 psi)

Product TypeDirectional Control Valve

FunctionAdvance / Hold / Retract

Have questions?Chat on WhatsApp

About This Product

VC15L is the locking version of the remote mounted manual directional control valve for use with single-acting cylinders. Its 3-way, 3-position, closed center design provides advance / hold / retract operation. Maximum operating pressure is 700 bar (10,000 psi), flow capacity is 17 L/min (4.5 gal/min) and weight is 4.7 kg (10.3 lb). For applications requiring positive load holding, VC and VM series valves are available with a pilot-operated check valve; this option hydraulically locks the load until the valve is shifted to retract.

Features and Benefits

Advance / hold / retract operation for single-acting cylinders
3-way, 3-position, closed center locking design
700 bar (10,000 psi) maximum operating pressure
17 L/min (4.5 gal/min) flow capacity
Positive load holding with pilot-operated check valve option

Enerpac VC15L

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Flow Capacity17 l/min (4.5 gal/min)

Mounting LocationRemote Mounted

Country of OriginUnited States

Maximum Operating Pressure700 bar (10,000 psi)

Valve Configuration3-Way, 3-Position, Closed Center, Locking

Product TypeDirectional Control Valve

FunctionAdvance / Hold / Retract

Cylinder CompatibilitySingle-Acting

SeriesVC

Valve Operation TypeManual

Model TypeSingle-Acting, 3-Way, 3-Position, Closed Center, Locking

Product LineIndustrial Tools, Workholding Tools

Weight4,7 kg (10.3 lbs)

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualManually Operated Control Valves, VM/VC-3/3L/4/4L/15/15L/20/20L, VM33/33L/43/43LPDF·4.5 MB 4 languages· in one file

Repair Parts SheetValve - ManualPDF·478 KB·English

BrochureVC-VE-VM-Series Directional Control Valves; EnglishPDF·1.2 MB

Document3 and 4-Way Manual Directional ValvesPDF·31 KB·English

CAD Files 3

3D Model
