How can I get a price quote for Enerpac VC15?

You can request a fast quote for Enerpac VC15 from Yılsa Engineering. Reference part number CEY-55221B11BF0E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac VC15 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac VC15 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac VC15?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

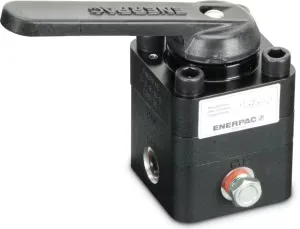

Enerpac VC15 700 bar Manual Directional Valve

Enerpac VC15; 700 bar (10,000 psi), 17 L/min, 3-way 3-position closed center manual remote mounted directional control valve.

EnerpacMFR # VC15SKU # CEY-55221B11BF0E

Flow Capacity17 l/min (4.5 gal/min)

Mounting LocationRemote Mounted

Country of OriginUnited States

Maximum Operating Pressure700 bar (10,000 psi)

Valve Configuration3-Way, 3-Position, Closed Center

Product TypeDirectional Control Valve

Have questions?Chat on WhatsApp

About This Product

VC15 is a remote mounted manual directional control valve for use with single-acting cylinders. Its 3-way, 3-position, closed center design provides advance / hold / retract operation. Maximum operating pressure is 700 bar (10,000 psi), flow capacity is 17 L/min (4.5 gal/min) and weight is 2.9 kg (6.4 lb). For applications requiring positive load holding, VC and VM series valves are available with a pilot-operated check valve; this option hydraulically locks the load until the valve is shifted to retract.

Features and Benefits

Advance / hold / retract operation for single-acting cylinders
3-way, 3-position, closed center design
700 bar (10,000 psi) maximum operating pressure
17 L/min (4.5 gal/min) flow capacity
Positive load holding with pilot-operated check valve option

Enerpac VC15

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Flow Capacity17 l/min (4.5 gal/min)

Mounting LocationRemote Mounted

Country of OriginUnited States

Maximum Operating Pressure700 bar (10,000 psi)

Valve Configuration3-Way, 3-Position, Closed Center

Product TypeDirectional Control Valve

FunctionAdvance / Hold / Retract

Cylinder CompatibilitySingle-Acting

SeriesVC

Valve Operation TypeManual

Model TypeSingle-Acting, 3-Way, 3-Position, Closed Center

Product LineIndustrial Tools, Workholding Tools

Weight2,9 kg (6.4 lbs)

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualManually Operated Control Valves, VM/VC-3/3L/4/4L/15/15L/20/20L, VM33/33L/43/43LPDF·4.5 MB 4 languages· in one file

Repair Parts SheetValve - ManualPDF·478 KB·English

BrochureVC-VE-VM-Series Directional Control Valves; EnglishPDF·1.2 MB

Document3 and 4-Way Manual Directional ValvesPDF·31 KB·English

CAD Files 3

3D Model

Alternative Names & Search Terms

VC15VC-15VC 15Enerpac VC15Enerpac VC-15VC15 valveVC15 directional control valveEnerpac VC seriesEnerpac VC series valveEnerpac manual directional control valveremote mounted directional control valve3-way 3-position manual valveclosed center hydraulic valvemanual valve for single-acting cylinder700 bar manual hydraulic valveadvance hold retract hydraulic valve17 L/min directional control valveEnerpac workholding directional valve
