Enerpac VC10/18TESTD 10 ton Valve Change-Out Set

Enerpac VC10/18TESTD; 10 ton (100 kN), 151 mm stroke, 690 bar (10,000 psi) hydraulic Secure-Grip valve change-out standard tool set.

EnerpacMFR # VC1018TESTDSKU # YLSTXA5ERIITQAO

Capacity100 kN (10 ton · 11.2 ton)

Dimension C5.1 in

Spreader Power SourceHydraulic

Maximum Operating Pressure690 bar (10,000 psi)

Spreading Force10 ton (11.2 ton)

ApplicationsSpread

Have questions?Chat on WhatsApp

About This Product

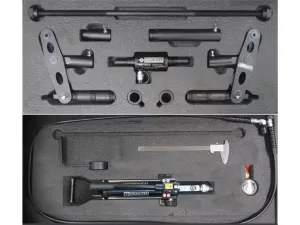

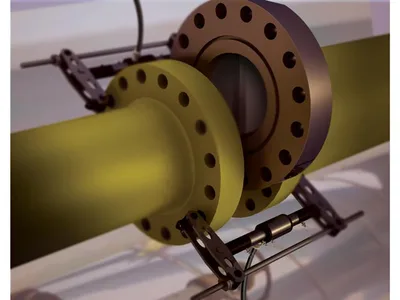

VC10/18TESTD is a valve change-out tool set from the Equalizer VC range, developed to assist in removing valves, spades/spacers or gaskets from large flange joints. Capacity is 10 ton (100 kN), stroke is 151 mm (5.9 in) and maximum operating pressure is 690 bar (10,000 psi). The span of the tool is longer than a standard Secure-Grip flange spreader and is adjustable for a range of situations. When used in pairs as recommended, the spreading force is 200 kN (22.4 imperial tons). The standard set includes 1 x VC10/18TE tool, 2 x M60, 2 x M64 and 2 x M70 collets, 1 x HP550S hydraulic hand pump, gauge with manifold, 2.0 m hydraulic hose, Secure Grip safety block, square drive flexible handle and vernier calliper.

Features and Benefits

Assists removal of valves, spades/spacers or gaskets from large flange joints
Span longer than a standard Secure-Grip flange spreader and adjustable
200 kN (22.4 imperial ton) spreading force when used in pairs as recommended
Complete set including HP550S hydraulic hand pump and gauge
Supplied with M60, M64 and M70 collets, 2.0 m hose and safety block

Enerpac VC1018TESTD

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Capacity100 kN (10 ton · 11.2 ton)

Dimension C5.1 in

Spreader Power SourceHydraulic

Maximum Operating Pressure690 bar (10,000 psi)

Spreading Force10 ton (11.2 ton)

ApplicationsSpread

Dimension V Max.514 mm (20.2 in)

Dimension V (Min.)0 in

Dimension F Max.690 mm (27.2 in)

Dimension A2 Min.370 mm (14.6 in)

Tip Clearance0 mm

Product TypeValve Change-Out Tool Set

Dimension A1 Min.300 mm (11.8 in)

Dimension C Max.130 mm (5.1 in)

SeriesVC10

Dimension V Min.0 mm

Dimension R (Min.)360 mm

Stroke151 mm (5.9 in)

Dimension R Min.14.2 in

Product LineBolting Tools

Dimension F Min.176 mm (6.9 in)

Weight85 kg (187.4 lbs)

Set IncludesHP550S

Documents & CAD

For this product 1

BrochureVC-Series Secure-Grip Valve Change Out Tools; EnglishPDF·342 KB
