How can I get a price quote for Enerpac V66NV?

You can request a fast quote for Enerpac V66NV from Yılsa Engineering. Reference part number CEY-7B4B2D994CD4. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac V66NV in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac V66NV genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac V66NV?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

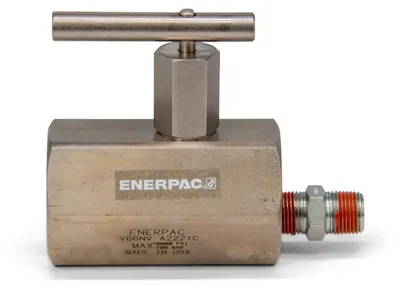

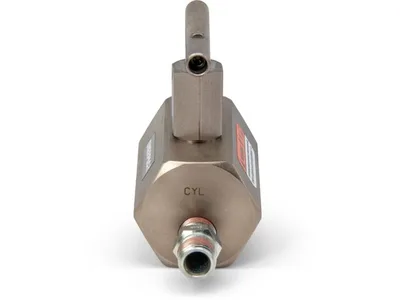

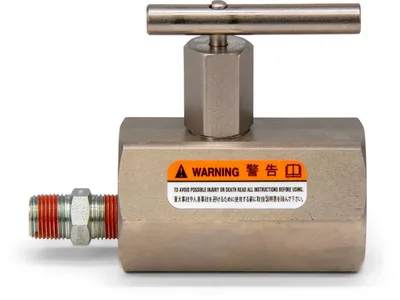

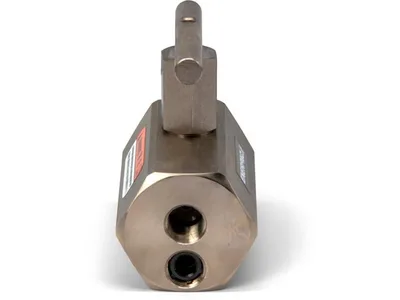

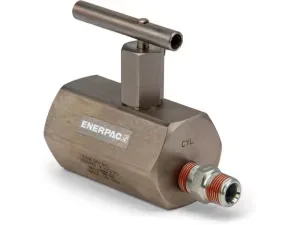

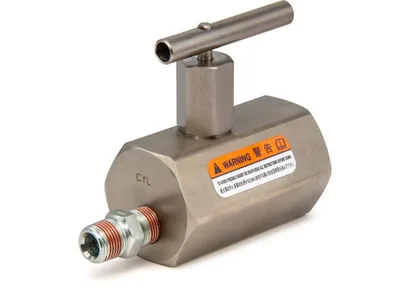

Enerpac V66NV 700 bar Check Valve

Enerpac V66NV; 700 bar (10,000 psi) maximum pressure, 3/8" NPTF ports, manually operated check valve with built-in relief valve and Viton seals.

EnerpacMFR # V66NVSKU # CEY-7B4B2D994CD4

Country of OriginUnited States

Oil Ports3/8" NPTF

Maximum Operating Pressure700 bar (10,000 psi)

Product TypeCheck Valve

SeriesV

Product LineIndustrial Tools

Have questions?Chat on WhatsApp

About This Product

The V66NV is a manually operated check valve used for load holding with single- and double-acting cylinders. It has a built-in relief valve and lets the operator change the oil direction quickly. It allows oil to flow back to the tank when the cylinder retracts. Maximum operating pressure is 700 bar (10,000 psi) and the oil ports are 3/8" NPTF. The built-in relief valve is set at 790 bar (11,500 psi). Weight is 1.8 kg. Viton seals suit high-temperature applications, and the nickel plating provides enhanced corrosion resistance. It is used in load holding circuits in harsh environments.

Features and Benefits

For load holding with single- and double-acting cylinders
Built-in relief valve set at 790 bar (11,500 psi)
Viton seals for high-temperature applications
Nickel plating for enhanced corrosion resistance
700 bar (10,000 psi) maximum operating pressure, 3/8" NPTF ports
Allows oil to flow back to tank when the cylinder retracts

Enerpac V66NV

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited States

Oil Ports3/8" NPTF

Maximum Operating Pressure700 bar (10,000 psi)

Product TypeCheck Valve

SeriesV

Product LineIndustrial Tools

Weight1,8 kg

Documents & CAD

Series documents 3· shared by this product series

Repair Parts SheetV-66 and V-66NV Manually Operated Flow Control Check ValvePDF·59 KB·English

BrochureRC-P-V-Series Extreme Environment Products; EnglishPDF·157 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English
