How can I get a price quote for Enerpac V2000?

You can request a fast quote for Enerpac V2000 from Yılsa Engineering. Reference part number CEY-7B4B2D9928BB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac V2000 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac V2000 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac V2000?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

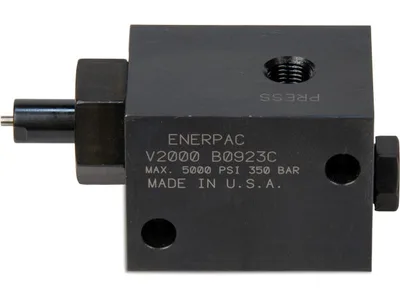

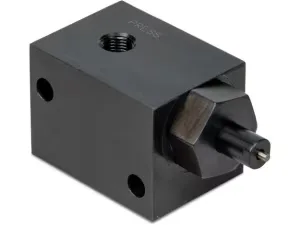

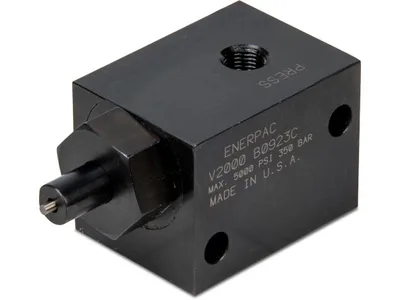

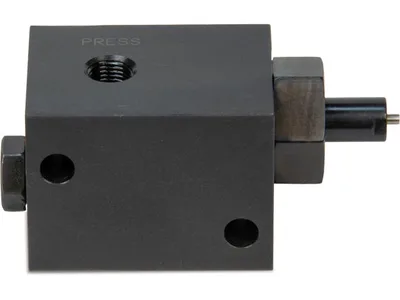

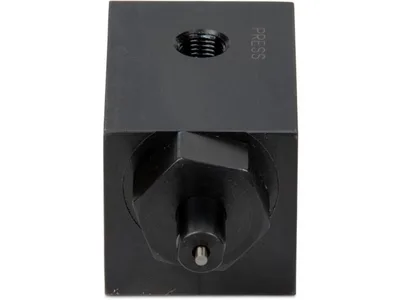

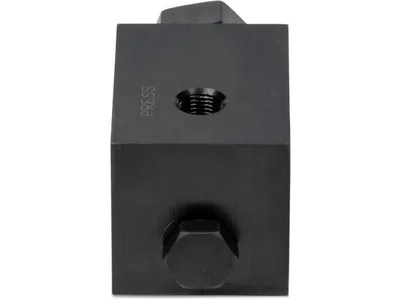

Enerpac V2000 Sequence Valve

Enerpac V2000; sequence valve with 14–140 bar (200–2,000 psi) adjustment range, 350 bar (5,000 psi) maximum pressure and 4.0 L/min maximum oil flow.

EnerpacMFR # V2000SKU # CEY-7B4B2D9928BB

Pressure Adjustment Range14 - 140 bar (200 - 2,000 psi)

Country of OriginUnited States

Max. Oil Flow250 in³/min

Oil Ports1/8" - 27 NPT

Maximum Operating Pressure350 bar (5,000 psi)

Product TypeSequence Valve

Have questions?Chat on WhatsApp

About This Product

The V2000 is a sequence valve that blocks oil to a secondary hydraulic circuit until pressure in the primary circuit reaches a preset level. It belongs to the Enerpac V Series and is used in workholding applications. Pressure adjustment range is 14–140 bar (200–2,000 psi), maximum operating pressure is 350 bar (5,000 psi) and maximum oil flow is 4.0 L/min (250 in³/min). Oil ports are 1/8-27 NPT and weight is approximately 0.9 kg. The built-in check system allows oil to flow back without external piping. Pressure is adjusted by screwing the slotted pin in or out.

Features and Benefits

Pressure setting of 14–140 bar (200–2,000 psi) for the secondary circuit
Direct, accurate pressure setting
Built-in check system, no external piping needed for return flow
Flag indicator appears every time the valve operates
350 bar (5,000 psi) maximum operating pressure
Approx. 0.9 kg weight, 1/8-27 NPT ports

Enerpac V2000

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Pressure Adjustment Range14 - 140 bar (200 - 2,000 psi)

Country of OriginUnited States

Max. Oil Flow250 in³/min

Oil Ports1/8" - 27 NPT

Maximum Operating Pressure350 bar (5,000 psi)

Product TypeSequence Valve

SeriesV

Maximum Oil Flow4,0 l/min

Product LineWorkholding Tools

Weight0,9 kg (2 lbs)

Documents & CAD

For this product 2

Instruction ManualValve - SequencePDF·81 KB 3 languages· in one file

Repair Parts SheetValve - SequencePDF·89 KB·English

Series documents 1· shared by this product series

BrochureWorkholding Valves, EnglishPDF·1.8 MB

CAD Files 3

3D Model

Alternative Names & Search Terms

V2000V-2000V 2000Enerpac V2000Enerpac V-2000Enerpac V 2000V2000 sequence valveEnerpac V seriesEnerpac V series sequence valvesequence valvehydraulic sequence valveworkholding sequence valvesecondary circuit pressure valve14-140 bar sequence valve350 bar sequence valve1/8-27 NPT sequence valveadjustable pressure sequence valve
