How can I get a price quote for Enerpac V152?

You can request a fast quote for Enerpac V152 from Yılsa Engineering. Reference part number CEY-7B4B2D99BAE7. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac V152 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac V152 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac V152?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

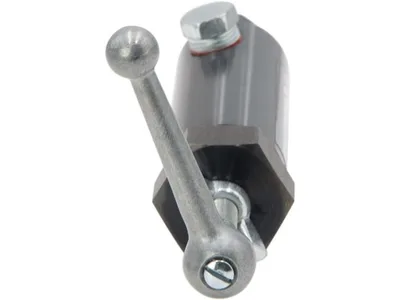

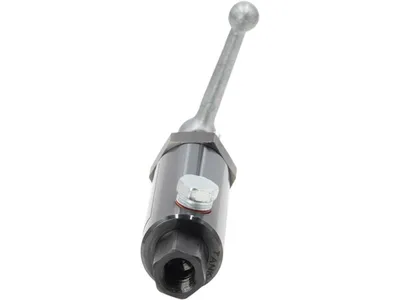

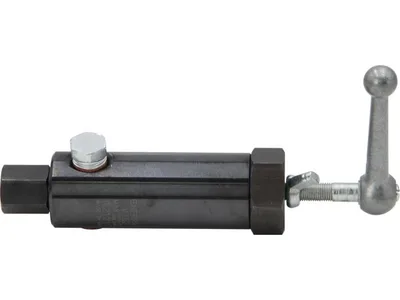

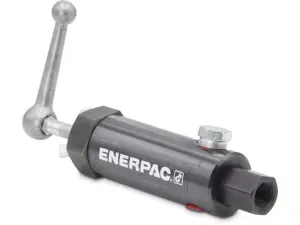

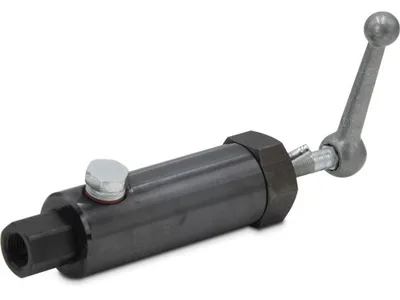

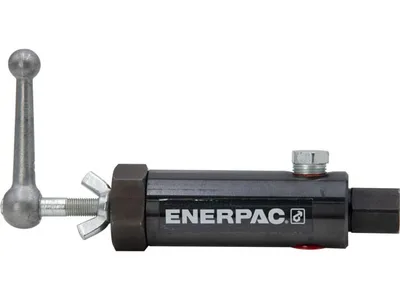

Enerpac V152 55–700 bar Pressure Relief Valve

Enerpac V152; adjustable pressure relief valve, 55–700 bar range, 30 L/min (1,830 in³/min), 3/8" NPT ports.

EnerpacMFR # V152SKU # CEY-7B4B2D99BAE7

Oil Ports3/8" NPTF (3/8" NPT)

Country of OriginUnited States

Pressure Function+3% Repeatability

Max. Oil Flow1,830 in³/min

Maximum Operating Pressure700 bar (10,000 psi)

Flow Capacity30 l/min

Have questions?Chat on WhatsApp

About This Product

The V152 is an adjustable pressure relief valve that limits the pressure developed by the pump in a hydraulic circuit, thereby limiting the force imposed on other components. The adjustment range is 55–700 bar (800–10,000 psi) with ±3% repeatability. Maximum oil flow is 30 L/min (1,830 in³/min) and the oil port is 3/8" NPT. The valve opens whenever the preset pressure is reached; turn the handle clockwise to increase the setting. A 3 ft (about 0.9 m) return line hose kit is included. It can be used to automate clamp cycles, prevent pressure loss and add operator and component safety. Its country of origin is the United States.

Features and Benefits

Adjustment range 55–700 bar (800–10,000 psi), ±3% repeatability
Limits pump pressure, thus limiting the force on other components
Maximum oil flow 30 L/min (1,830 in³/min)
3/8" NPT oil port
Turn the handle clockwise to increase pressure setting
Includes 3 ft (about 0.9 m) return line hose kit

Enerpac V152

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Oil Ports3/8" NPTF (3/8" NPT)

Country of OriginUnited States

Pressure Function+3% Repeatability

Max. Oil Flow1,830 in³/min

Maximum Operating Pressure700 bar (10,000 psi)

Flow Capacity30 l/min

Adjustable Pressure Range55 - 700 bar

Product TypePressure Relief Valve

SeriesV

Product LineIndustrial Tools, Workholding Tools

Documents & CAD

For this product 2

Instruction ManualValvePDF·166 KB 4 languages· in one file

2D DrawingV152 drawingPDF·124 KB

Series documents 2· shared by this product series

Repair Parts SheetValve - ReliefPDF·48 KB·English

BrochureV-Series Flow Pressure Control Valves; EnglishPDF·587 KB

CAD Files 3

3D Model
