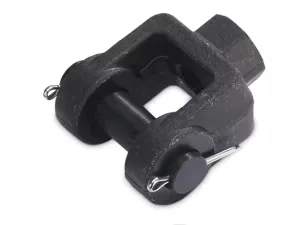

Enerpac TRRC40 Rod Clevis 311.8 kN

Enerpac TRRC40; 70,095 lbs (≈311.8 kN) maximum tension load, 1-7/8"-12 thread, tie rod cylinder rod clevis.

EnerpacMFR # TRRC40SKU # CEY-7B4B2D99266E

Country of OriginUnited States

Dimension CW1.25 in

Dimension CD2 in

Product TypeRod Clevis

Maximum Tension Load70095 lbs

Dimension CE5.5 in

Have questions?Chat on WhatsApp

About This Product

TRRC40 is a clevis-type rod end attachment (rod clevis) for tie rod cylinders. Maximum tension load is 70,095 lbs (≈311.8 kN) and the thread size is 1-7/8"-12. The matching pin is TRPP40. A rod eye or rod clevis is required for proper mounting of TRCM series cylinders. Pivot pins are not supplied with the product and must be ordered separately; the pins are provided with cotter pins. The product belongs to the Enerpac Workholding Tools line. Country of origin is the United States.

Features and Benefits

Maximum tension load 70,095 lbs (≈311.8 kN)
Thread size 1-7/8"-12
Required for proper mounting of TRCM series cylinders
Matching pin: TRPP40 (ordered separately)
Pivot pins are provided with cotter pins

Enerpac TRRC40

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited States

Dimension CW1.25 in

Dimension CD2 in

Product TypeRod Clevis

Maximum Tension Load70095 lbs

Dimension CE5.5 in

SeriesTRRC-DISC

Dimension CB63,5 mm (2.5 in)

Dimension ER2 in

Dimension KK1-7/8"-12 in

Dimension CR2 in

Dimension CA5 in

Dimension A76,2 mm (3 in)

Product LineWorkholding Tools
