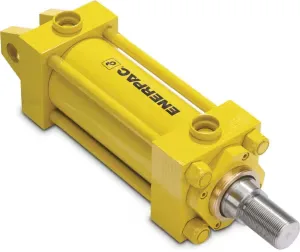

Enerpac TRCM4002 279.6 kN Tie Rod Cylinder

Enerpac TRCM4002; 279.6 kN (62,850 lbs) capacity, 50.8 mm (2 in) stroke, 101.6 mm bore, clevis mount tie rod hydraulic cylinder rated for 350 bar working pressure.

EnerpacMFR # TRCM4002SKU # CEY-55221B13117B

Dimension G50,8 mm (2 in)

Dimension E127,0 mm (5 in)

Maximum Cylinder Capacity (Retract)170 kN (38300 lbs)

Dimension V9,6 mm (0.38 in)

Dimension C25,4 mm (1 in)

Dimension P98,5 mm (3.88 in)

Have questions?Chat on WhatsApp

About This Product

TRCM4002 is a clevis mount tie rod hydraulic cylinder from the Enerpac Workholding Tools line. It has a 101.6 mm (4 in) bore and a 50.8 mm (2 in) stroke; push capacity is 279.6 kN (62,850 lbs) and retract capacity is 170.4 kN (38,300 lbs). With a maximum operating pressure of 350 bar (5,000 psi), the cylinder uses NFPA MP1 style mounting and includes a pivot pin for mounting in your machine. It is designed to carry shear loads. It is used in push and pull applications such as hydraulic presses, machine tools and workholding systems. Standard rod eyes and rod clevises are available for each bore size.

Features and Benefits

Pivot pin included for mounting in your machine
NFPA style MP1 clevis mount
Designed to carry shear loads
Standard rod eyes and rod clevises available for each bore size
350 bar (5,000 psi) maximum operating pressure
Pivot pins should be carried by rigidly held bearings and closely fit along the entire pin length

Enerpac TRCM4002

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G50,8 mm (2 in)

Dimension E127,0 mm (5 in)

Maximum Cylinder Capacity (Retract)170 kN (38300 lbs)

Dimension V9,6 mm (0.38 in)

Dimension C25,4 mm (1 in)

Dimension P98,5 mm (3.88 in)

Maximum Operating Pressure350 bar (5,000 psi)

ApplicationsPush, Pull

Dimension K19,0 mm (0.75 in)

Cylinder Bore Diameter (E)101,6 mm (4 in)

Dimension LR47,7 mm (1.88 in)

Product TypeTie Rod Cylinder

Dimension L54,1 mm (2.13 in)

SeriesTR-DISC

Dimension CB50,8 mm (2 in)

Dimension ZC292,1 mm (11.5 in)

Dimension CD35,0 mm (1.38 in)

Dimension XC257,3 mm (10.13 in)

Dimension J44,4 mm (1.75 in)

Dimension MR35,0 mm (1.38 in)

Dimension A76,2 mm (3 in)

Product LineWorkholding Tools

Piston Diameter101,6 mm (4 in)

Maximum Cylinder Capacity (Advance)62850 lbs

Country of OriginUnited States

Dimension F22,3 mm (0.88 in)

Dimension D52,3 mm (2.06 in)

Dimension CW25,4 mm (1 in)

Cylinder Effective Area (Advance)81.1 cm² (12.57 in²)

Cylinder Effective Area (Retract)49,4 cm²

Dimension B79,5 mm (3.13 in)

Plunger TypeSolid

Cylinder Effective Area (Retract)7.66 in²

Dimension KK21-7/8"-12

Cylinder MaterialSteel

Rod Diameter63,5 mm

Dimension LB168,4 mm (6.63 in)

Dimension M35,0 mm

Maximum Cylinder Capacity (Advance)280 kN

Retract Capacity at 350 bar170 kN

Rod Diameter2.5 in

Dimension NA62,2 mm (2.45 in)

Stroke50.8 mm (2 in)

Dimension W35,0 mm (1.38 in)

Dimension EESAE #12

Cylinder Capacity at 350 bar (Advance)280 kN

Dimension MM63,5 mm (2.5 in)

Return TypeDouble-Acting, Hydraulic Return
