How can I get a price quote for Enerpac TM5?

You can request a fast quote for Enerpac TM5 from Yılsa Engineering. Reference part number CEY-7B4B2D996426. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac TM5 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac TM5 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac TM5?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

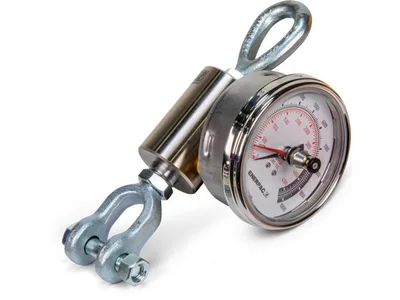

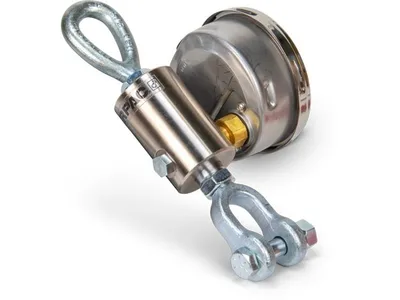

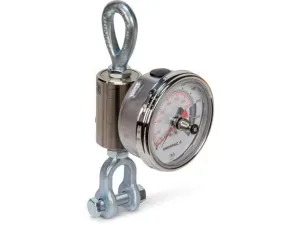

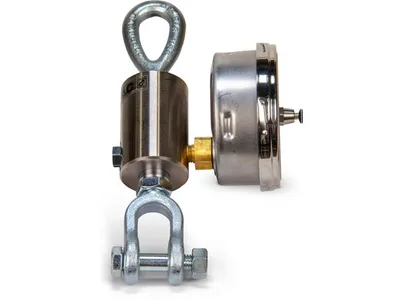

Enerpac TM5 4,500 kg Tension Meter

Enerpac TM5; 4,500 kg (10,000 lbs) capacity, 100 kg increments, ±2% accuracy, direct mounted tension meter.

EnerpacMFR # TM5SKU # CEY-7B4B2D996426

Dimension G19 mm (0.75 in)

Gauge Capacity4.500 kg (10,000 lbs)

Dimension E93 mm (4 in)

Gauge Increments100 kg

Country of OriginUnited States

Dimension F22 mm (0.88 in)

Have questions?Chat on WhatsApp

About This Product

The TM5 is a direct mounted tension meter. Gauge capacity is 4,500 kg (10,000 lbs), increments are 100 kg (100 lbs), and the minimum reading is 500 kg (1,000 lbs). Accuracy is ±2% of full scale. The dual-range readout shows both kg and lbs. A maximum indicating pointer is provided for pre-selected forces or to hold the maximum force reading. The unit is zinc and bronze plated to resist rust and corrosion, and a cushioned metal case provides safe storage and transport. TM models are 100% tested to verify accuracy within ±2%. If a calibrated tool is required, it must be submitted for certification testing; certification is not available from Enerpac.

Features and Benefits

Accuracy of ±2% of full scale
Zinc and bronze plated to resist rust and corrosion

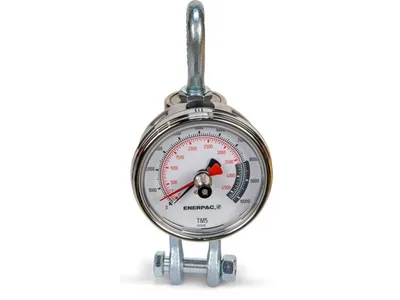

Dual-range readout in kilograms and pounds

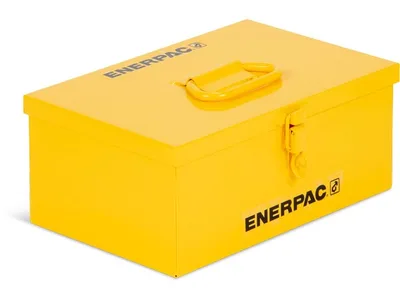

Cushioned metal case for safe storage and transport
Maximum indicating pointer holds peak force readings
100% tested for ±2% accuracy; certification not available from Enerpac

Enerpac TM5

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

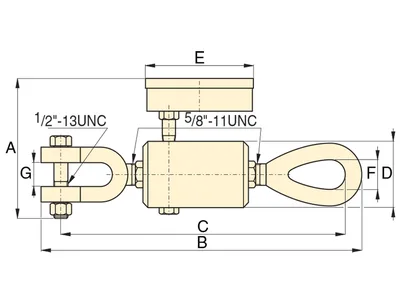

Dimension G19 mm (0.75 in)

Gauge Capacity4.500 kg (10,000 lbs)

Dimension E93 mm (4 in)

Gauge Increments100 kg

Country of OriginUnited States

Dimension F22 mm (0.88 in)

Dimension D50 mm (2 in)

Dimension C236 mm (9.29 in)

Dimension B247 mm (9.75 in)

Dimension A120 mm (4.75 in)

Product LineIndustrial Tools

Product TypeDirect Mounted Tension Meter

Minimum Reading500 kg (1,000 lbs)

SeriesTM

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualLoad Cells, HydraulicPDF·679 KB·English

Repair Parts SheetLH Series Load Cells & TM-5 Tension MeterPDF·557 KB·English

BrochureHydraulic_Presses_EN-AUPDF·1.4 MB

BrochureTension_Meter_and_Load_Cells_EN-SGPDF·113 KB·English

BrochureTM-LH-Series Tension Meter Load Cells; EnglishPDF·116 KB
