How can I get a price quote for Enerpac TL248?

You can request a fast quote for Enerpac TL248 from Yılsa Engineering. Reference part number YLSVVESTXNOBEI. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac TL248 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac TL248 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac TL248?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

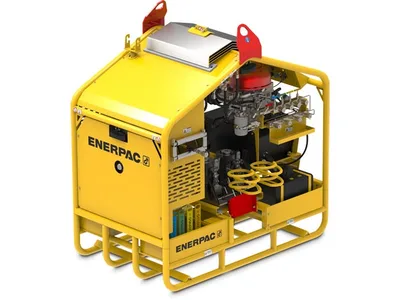

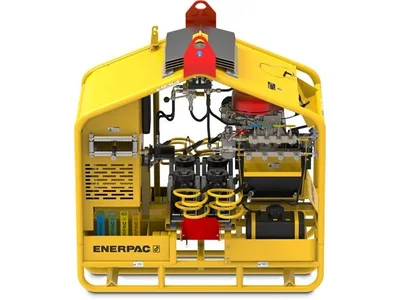

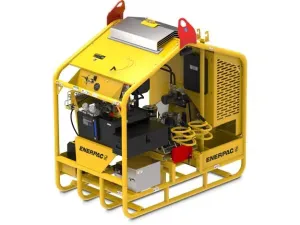

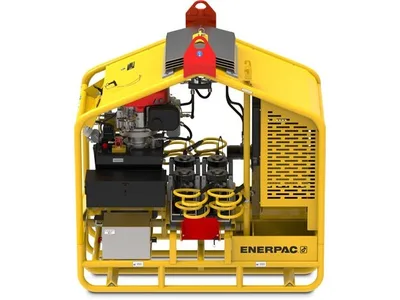

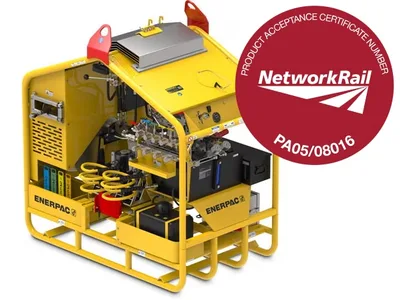

Enerpac TL248 248 ton Track Lift System

Enerpac TL248; 248 ton capacity, 150 mm stroke, 700 bar operating pressure, self-powered portable Track Lift System.

EnerpacMFR # TL248SKU # YLSVVESTXNOBEI

Country of OriginUnited States

Length1610 mm (63.4 in)

Housing Width197 mm (7.75 in)

Stroke150 mm (5.91 in)

Reservoir Capacity40 l

Cylinder Extended Height462 mm (18.19 in)

Have questions?Chat on WhatsApp

About This Product

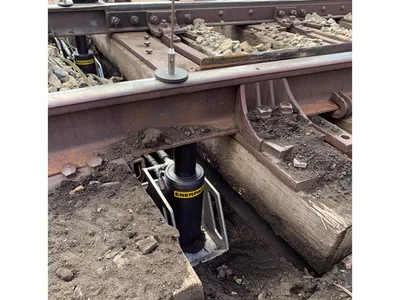

The TL248 is a self-powered system developed to simplify complex track lifts on rail lines, such as turnouts, diamond crossings, switches, retarders and bridge ends. It offers 248 ton lifting and holding capacity, a 150 mm stroke and 700 bar maximum operating pressure. The system has a 7.5 kW engine, a 40 litre reservoir and 3.3 L/min output flow, and weighs 753 kg. Dimensions are about 1610 x 1730 mm (L x H), and it is designed to fit in a pickup truck bed. It can raise and lower track with 1/8 inch (about 3 mm) precision. The manufacturer states it can lift up to 4 diamond crossings or 6 switches per day. It is used to reduce project time, labor and cost on rail sites with limited access.

Features and Benefits

Lifts and holds up to 248 tons
Easy to transport; fits in the bed of a pickup truck
Raises and lowers track with 1/8 inch precision
Less manpower needed
Self-powered design: 7.5 kW engine, 40 L reservoir
Up to 4 diamond crossings or 6 switches lifted per day

Enerpac TL248

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited States

Length1610 mm (63.4 in)

Housing Width197 mm (7.75 in)

Stroke150 mm (5.91 in)

Reservoir Capacity40 l

Cylinder Extended Height462 mm (18.19 in)

Housing Length369 mm (14.53 in)

Output Flow Rate3,3 l/min (200 in³/min)

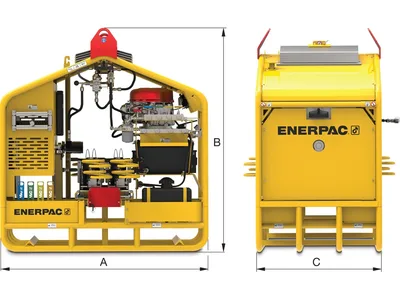

Dimension C955 mm (37.6 in)

Maximum Operating Pressure700 bar (10,000 psi)

Capacity248 ton

Usable Fuel Capacity19 l (5 gal)

Dimension B1730 mm (68.1 in)

Reservoir Capacity10.3 gal

Dimension A1610 mm (63.4 in)

Cylinder Collapsed Height312 mm (12.28 in)

Product LineIndustrial Tools

Height1730 mm (68.1 in)

Weight753 kg (1660 lbs)

Engine Power7,5 kW (10.5 hp)

Product TypeTrack Lift System

Width955 mm (37.6 in)

SeriesTL

Documents & CAD

For this product 2

Instruction ManualTL248 Track Lift SolutionPDF·16.9 MB

BrochureTL248_Track-Lift-System_EN-GB (EN-GB)PDF·448 KB
