How can I get a price quote for Enerpac TH630?

You can request a fast quote for Enerpac TH630 from Yılsa Engineering. Reference part number CEY-7B4B2D99A704. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac TH630 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac TH630 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac TH630?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

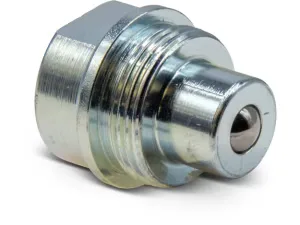

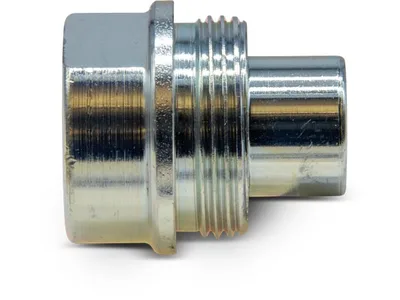

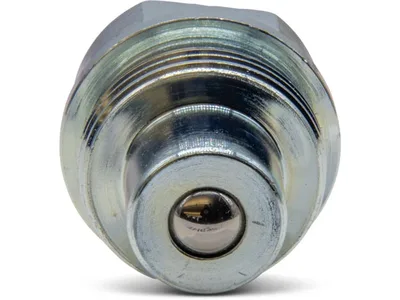

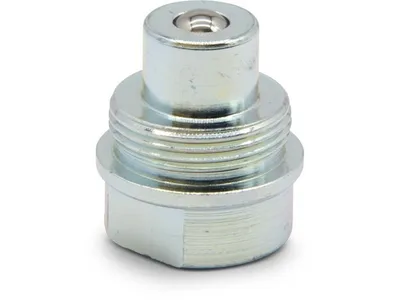

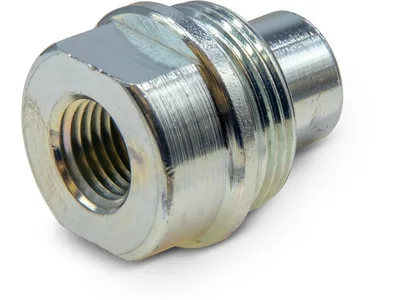

Enerpac TH630 700 bar Spin-On Coupler

Enerpac TH630; 700 bar (10,000 psi) maximum operating pressure, 1/4" NPTF connection, 11.4 L/min maximum flow, spin-on hydraulic coupler male half.

EnerpacMFR # TH630SKU # CEY-7B4B2D99A704

Dimension G21 mm (0.82 in)

Dimension E29 mm (1.14 in)

Country of OriginUnited States

Dimension F19 mm (0.74 in)

Dimension D29 mm (1.14 in)

Dimension C1/4 nptf mm

Have questions?Chat on WhatsApp

About This Product

The TH630 is the male half of an Enerpac TH series spin-on hydraulic coupler. It allows quick connection of hydraulic lines. The connection size is 1/4" NPTF. Maximum operating pressure is 700 bar (10,000 psi) and maximum flow is 11.4 L/min (695 in³/min). When the male and female halves are connected, the total length (dimension A) is 73 mm. Body diameter is 29 mm and male half length is 60 mm. Enerpac's 1/4" couplers in this range are used on torque wrench lines. The coupler allows quick connection and disconnection of hoses and equipment.

Features and Benefits

Quick connection of hydraulic lines
700 bar (10,000 psi) maximum operating pressure
1/4" NPTF connection; suited to torque wrench lines
11.4 L/min maximum flow capacity
Male half; total connected length is 73 mm with the female half

Enerpac TH630

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

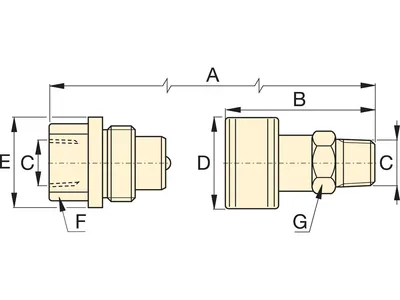

Dimension G21 mm (0.82 in)

Dimension E29 mm (1.14 in)

Country of OriginUnited States

Dimension F19 mm (0.74 in)

Dimension D29 mm (1.14 in)

Dimension C1/4 nptf mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B60 mm (2.36 in)

Part TypeMale Half

Max. Operating Pressure10000 psi

Product TypeSpin-on Coupler

Maximum Flow Capacity11,4 l/min (695 in³/min)

SeriesTH

Dimension A73 mm (2.87 in)

Product LineIndustrial Tools

Documents & CAD

Series documents 3· shared by this product series

Instruction ManualHydraulic CouplersPDF·237 KB

BrochureA-C-F-T-Series Hydraulic Couplers; EnglishPDF·360 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English
