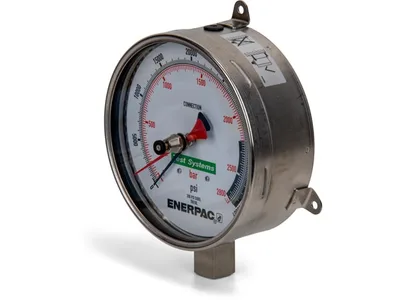

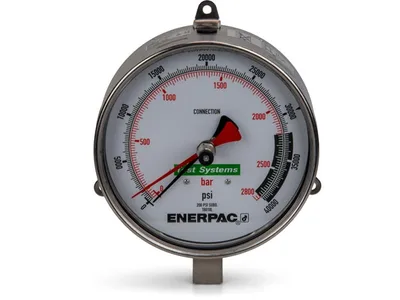

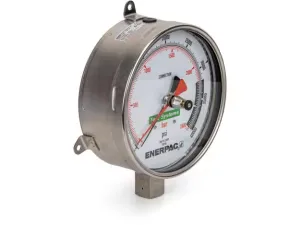

Enerpac T6010L 2800 bar Test Gauge

Enerpac T6010L; 2800 bar (40,000 psi) maximum pressure, 192 mm face, dual-scale (bar/psi) stainless steel test system pressure gauge.

EnerpacMFR # T6010LSKU # CEY-55221B11C301

Accuracy (Full Scale)1.5 %

Country of OriginUnited States

Graduation Intervals20 bar (200 psi)

Graduation Intervals200 psi

Maximum Operating Pressure2800 bar (40,000 psi)

StyleDry

Have questions?Chat on WhatsApp

About This Product

The T6010L is a dry-type, stainless steel pressure gauge from the Enerpac T-Series high-pressure test gauges. Maximum operating pressure is 2800 bar (40,000 psi) and the face diameter is 192 mm. The dial reads in both bar and psi, with 20 bar (200 psi) graduations and a 1/4 cone thread connection. Accuracy is 1.5% of full scale. The series-standard integral maximum indicator pointer, safety blow-out disk and pressure equalizing membrane are included. It is used for testing and verifying very high-pressure hydraulic systems. Gauge snubbers or needle valves are recommended for high-cycle applications.

Features and Benefits

2800 bar (40,000 psi) maximum operating pressure
Dual bar and psi scale
Large 192 mm face for easy readability
1.5% of full scale accuracy
Pressure sensing parts sealed and dampened by glycerine for long life
Safety blow-out disk and pressure equalizing membrane

Enerpac T6010L

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Accuracy (Full Scale)1.5 %

Country of OriginUnited States

Graduation Intervals20 bar (200 psi)

Graduation Intervals200 psi

Maximum Operating Pressure2800 bar (40,000 psi)

StyleDry

Number Intervals500 bar (5000 psi)

Product TypePressure Gauge

SeriesT - Gauge

Product LineIndustrial Tools

Port Thread1/4 Cone

Face Diameter192 mm

Documents & CAD

For this product 1

2D DrawingT6010L drawingPDF·187 KB

Series documents 3· shared by this product series

Instruction Manual6" Test GaugesPDF·467 KB 4 languages· in one file

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

BrochureT-Series Test System Gauges; EnglishPDF·185 KB

CAD Files 3

3D Model
