How can I get a price quote for Enerpac T6001L?

You can request a fast quote for Enerpac T6001L from Yılsa Engineering. Reference part number CEY-7B4B2D994A24. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac T6001L in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac T6001L genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac T6001L?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

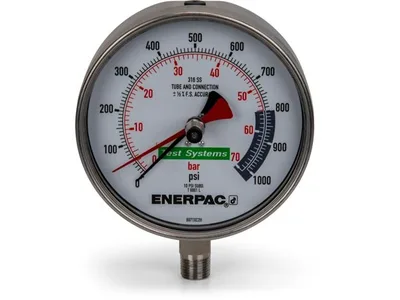

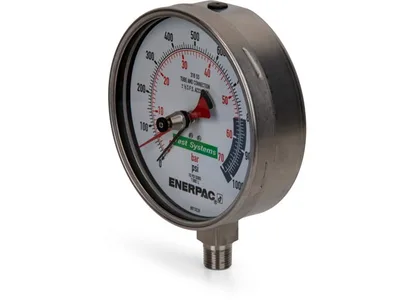

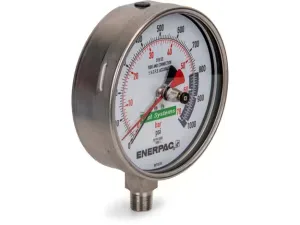

Enerpac T6001L 70 bar test gauge

Enerpac T6001L; alloy steel dry test system gauge, 70 bar (1,000 psi) maximum pressure, 162 mm face, 1/2 NPTF thread, dual bar/psi scale.

EnerpacMFR # T6001LSKU # CEY-7B4B2D994A24

Accuracy (Full Scale)0.5 %

Country of OriginUnited States

Graduation Intervals1 bar (10 psi)

Graduation Intervals10 psi

Maximum Operating Pressure70 bar (1,000 psi)

StyleDry

Have questions?Chat on WhatsApp

About This Product

T6001L is a dry-type alloy steel test system gauge from the T-series high pressure test gauges. Maximum operating pressure is 70 bar (1,000 psi), face diameter is 162 mm and thread is 1/2 NPTF. Graduation is 1 bar / 10 psi and accuracy is 0.5% of full scale. It has a dual bar and psi scale and an integral maximum indicator pointer as standard. All pressure sensing parts are sealed and dampened by glycerine, and it includes a safety blow-out disk and pressure equalizing membrane. It suits accurate high-pressure testing applications. Gauge snubbers or needle valves are recommended for high cycle applications.

Features and Benefits

Dual scale reading in bar and psi
Maximum operating pressure of 70 bar (1,000 psi), 0.5% accuracy
162 mm face for easy readability
Pressure sensing parts sealed and dampened by glycerine
Safety blow-out disk and pressure equalizing membrane
Snubber or needle valve recommended for high cycle use

Enerpac T6001L

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Accuracy (Full Scale)0.5 %

Country of OriginUnited States

Graduation Intervals1 bar (10 psi)

Graduation Intervals10 psi

Maximum Operating Pressure70 bar (1,000 psi)

StyleDry

Number Intervals10 bar (100 psi)

Product TypePressure Gauge

SeriesT - Gauge

Product LineIndustrial Tools

Port Thread1/2 NPTF

Face Diameter162 mm

Documents & CAD

For this product 1

2D DrawingT6001L drawingPDF·148 KB

Series documents 3· shared by this product series

Instruction Manual6" Test GaugesPDF·467 KB 4 languages· in one file

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

BrochureT-Series Test System Gauges; EnglishPDF·185 KB

CAD Files 3

3D Model

Alternative Names & Search Terms

T6001LT-6001LT 6001LEnerpac T6001LEnerpac T-6001LT6001L pressure gaugeT6001L test system gaugeEnerpac T-series gaugeT - Gauge series70 bar hydraulic pressure gauge1000 psi hydraulic pressure gauge162 mm face pressure gauge1/2 NPTF hydraulic gaugedual scale bar psi gaugealloy steel test gaugedry type high pressure gaugehydraulic test pressure gauge
