How can I get a price quote for Enerpac SURS92?

You can request a fast quote for Enerpac SURS92 from Yılsa Engineering. Reference part number YLS74YX1O0OLORW. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac SURS92 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac SURS92 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac SURS92?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

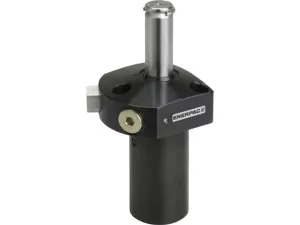

Enerpac SURS92 8 kN Swing Clamp

SURS92; 8.0 kN (1800 lbs) force, 11.9 mm clamp stroke, 350 bar max. pressure, single-acting right-turning upper flange hydraulic swing clamp.

EnerpacMFR # SURS92SKU # YLS74YX1O0OLORW

Dimension N26,4 mm (1.04 in)

Dimension GG1/4" mm

Dimension W67,9 mm (2.67 in)

Mounting StyleUpper Flange

Country of OriginUnited States

Dimension F25,0 mm (0.98 in)

Have questions?Chat on WhatsApp

About This Product

SURS92 is a single-acting, right-turning, upper flange hydraulic swing clamp from the Enerpac SU series. It delivers 8.0 kN (1800 lbs) of force with a clamp stroke of 11.9 mm. Operating pressure ranges from 35 to 350 bar (500–5,000 psi). The port connection is G1/4" and the mounting thread is M10 x 1.5. Oil connection can be made through a threaded port or by manifold mounting. It is used to secure workpieces in machining fixtures, integrated manifold workholding solutions and automated lines. Country of origin is the United States.

Features and Benefits

Flexible design allows manifold or threaded port connection
Low profile mounting allows the body to sit below the mounting surface
Easy installation with 3 or 4 mounting bolts
Symmetrical rectangular flange enables clamping at three sides of the cylinder
30, 45 and 60 degree swing angles available on request
Designed for integrated manifold mounting solutions

Enerpac SURS92

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension N26,4 mm (1.04 in)

Dimension GG1/4" mm

Dimension W67,9 mm (2.67 in)

Mounting StyleUpper Flange

Country of OriginUnited States

Dimension F25,0 mm (0.98 in)

Dimension D47,9 mm (1.88 in)

Dimension V6,5 mm (0.256 in)

Dimension C28,2 mm (1.11 in)

Dimension P45,9 mm (1.78 in)

Dimension U42,0 mm (1.65 in)

Maximum Operating Pressure350 bar (5,000 psi)

Dimension B76,3 mm (3 in)

Dimension T56,0 mm (2.21 in)

Dimension QM10 x 1,5 mm

ApplicationsClamp

Dimension K25,0 mm (0.99 in)

Clamping Stroke11,9 mm (0.47 in)

Minimum Operating Pressure35 bar (500 psi)

Dimension H13,0 mm (0.51 in)

Product TypeSwing Clamp - Upper Flange

Rotation DirectionRight

Dimension M15,0 mm (0.59 in)

Dimension X28,6 mm (1.128 in)

Return TypeSingle-Acting

SeriesSU

Dimension D170,0 mm (2.76 in)

Dimension C151,2 mm (2.02 in)

Cylinder Effective Area (Clamp)3,16 cm² (0.49 in²)

Maximum Oil Flow1,0 l/min (60 in³/min)

Stroke23 mm (0.9 in)

Model Type1800 lbs, S/A, Right, 0.47 in. Clamp Stroke

Dimension D254,0 mm (2.13 in)

Standard Clamp ArmCAS92

Dimension A144,2 mm (5.68 in)

Dimension S23,7 mm (0.934 in)

Dimension R26,0 mm (1.02 in)

Product LineWorkholding Tools

Weight2,0 kg (4.4 lbs)

Oil Capacity (Clamp)6,88 cm³ (0.42 in³)

Clamping Force8,0 kN (1800 lbs)

Documents & CAD

Series documents 2· shared by this product series

Repair Parts Sheet9 kN Swing CylindersPDF·158 KB·English

BrochureWorkholding Swing Clamps, EnglishPDF·1.8 MB

CAD Files 5

3D Model
