How can I get a price quote for Enerpac SURS52?

You can request a fast quote for Enerpac SURS52 from Yılsa Engineering. Reference part number YLSJEO8TTJXOD1O. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac SURS52 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac SURS52 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac SURS52?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

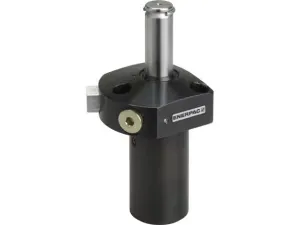

Enerpac SURS52 4.9 kN Swing Clamp

SURS52; 4.9 kN force, 9.9 mm clamp stroke, 350 bar max. pressure, single-acting right-turning upper flange hydraulic swing clamp.

EnerpacMFR # SURS52SKU # YLSJEO8TTJXOD1O

Dimension GG1/8" mm

Dimension W66,0 mm

Country of OriginUnited States

Dimension F16,0 mm

Dimension V6,8 mm

Dimension U50,0 mm

Have questions?Chat on WhatsApp

About This Product

SURS52 is a single-acting, right-turning, upper flange hydraulic swing clamp from the Enerpac SU series. It delivers 4.9 kN of force, with a total stroke of 22.6 mm and a clamp stroke of 9.9 mm. Operating pressure ranges from 35 to 350 bar. The port connection is G1/8" and the mounting thread is M8 x 1.25. Clamp oil capacity is 4.10 cm³, maximum oil flow is 0.4 L/min and weight is 1.1 kg. The standard clamp arm is CAS52. It is used for hydraulically securing workpieces in machining fixtures and workholding applications. Country of origin is the United States.

Features and Benefits

4.9 kN clamping force at up to 350 bar
9.9 mm clamp stroke, 22.6 mm total stroke
G1/8" port and M8 x 1.25 mounting thread
Compact body weighing only 1.1 kg
Works with the standard CAS52 clamp arm

Enerpac SURS52

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension GG1/8" mm

Dimension W66,0 mm

Country of OriginUnited States

Dimension F16,0 mm

Dimension V6,8 mm

Dimension U50,0 mm

Maximum Operating Pressure350 bar

Dimension T47,9 mm

ApplicationsClamp

Dimension D34,8 mm

Dimension K19,2 mm

Clamping Stroke9,9 mm

Dimension Z60 degrees

Product TypeSwing Clamp - Upper Flange

Dimension Y30 degrees

Dimension H9,9 mm

Dimension X14,4 mm

SeriesSU

Dimension C150,1 mm

Cylinder Effective Area (Clamp)1,81 cm²

Dimension N19,1 mm

Maximum Oil Flow0,4 l/min

Standard Clamp ArmCAS52

Stroke22.6 mm

Minimum Operating Pressure35 bar

Dimension S41,0 mm

Product LineWorkholding Tools

Weight1,1 kg

Dimension C27,4 mm

Oil Capacity (Clamp)4,10 cm³

Dimension B69,3 mm

Dimension QM8 x 1,25 mm

Dimension D154,0 mm

Dimension A135,3 mm

Dimension P40,0 mm

Dimension D257,2 mm

Clamping Force4,9 kN

Documents & CAD

Series documents 3· shared by this product series

Instruction ManualSwing CylinderPDF·785 KB 4 languages· in one file

Repair Parts SheetCylinderPDF·96 KB·English

BrochureWorkholding Swing Clamps, EnglishPDF·1.8 MB

CAD Files 5

3D Model
