How can I get a price quote for Enerpac SULD121?

You can request a fast quote for Enerpac SULD121 from Yılsa Engineering. Reference part number CEY-7B4B2D9954DC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac SULD121 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac SULD121 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac SULD121?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

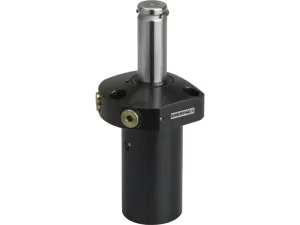

Enerpac SULD121 11.6 kN Swing Clamp

Enerpac SULD121; 11.6 kN (2600 lbs) force, 12.7 mm clamping stroke, 350 bar max pressure, double-acting left-turning upper flange swing clamp.

EnerpacMFR # SULD121SKU # CEY-7B4B2D9954DC

Dimension N25,1 mm (0.99 in)

Dimension GSAE #4

Dimension W85,9 mm (3.38 in)

Mounting StyleUpper Flange

Country of OriginUnited States

Dimension F22,2 mm (0.87 in)

Have questions?Chat on WhatsApp

About This Product

SULD121 is a double-acting, left-turning, upper flange swing clamp from the SU series. It delivers 11.6 kN (2600 lbs) of force with a 12.7 mm clamping stroke. Maximum operating pressure is 350 bar and minimum is 500 psi (about 35 bar). Oil connection can be made through an SAE #4 threaded port or the integrated manifold O-ring (568-011). Unclamp oil capacity is 22.94 cm³ and the unclamp effective area is 1.23 in². Mounting uses 3 or 4 bolts. It is used in workholding applications to clamp parts on fixtures with integrated manifold mounting.

Features and Benefits

Flexible design allows manifold or threaded port connection
Low profile mounting allows the body to sit below the mounting surface
Simple mounting preparation with 3 or 4 mounting bolts
Symmetrical rectangular flange enables clamping at three sides of the cylinder
30, 45 and 60 degree swing angles available on request

Enerpac SULD121

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension N25,1 mm (0.99 in)

Dimension GSAE #4

Dimension W85,9 mm (3.38 in)

Mounting StyleUpper Flange

Country of OriginUnited States

Dimension F22,2 mm (0.87 in)

Dimension D47,5 mm (1.87 in)

Dimension V8,8 mm (0.347 in)

Minimum Depth J220,3 mm

Oil Capacity (Unclamp)22,94 cm³

Dimension C27,4 mm (1.08 in)

Dimension P51,4 mm (2 in)

Dimension U63,5 mm (ø2.50 in)

Maximum Operating Pressure350 bar (5,000 psi)

Cylinder Effective Area (Unclamp)7,94 cm² (1.23 in²)

Dimension B85,7 mm (3.37 in)

Dimension T61,8 mm (2.44 in)

Dimension Q.375-16 unc mm

ApplicationsClamp

Dimension K30,4 mm (1.2 in)

Clamping Stroke12,7 mm (0.5 in)

Dimension Z60 degrees

Minimum Operating Pressure35 bar (500 psi)

Dimension H9,9 mm (0.39 in)

Product TypeSwing Clamp - Upper Flange

Dimension Y30 degrees

Rotation DirectionLeft

Fixture Hole D349,0

Dimension X18,2 mm

Return TypeDouble-Acting

SeriesSU

Dimension D166,4 mm (2.62 in)

Dimension C155,3 mm (2.18 in)

Cylinder Effective Area (Clamp)4,06 cm² (0.63 in²)

Maximum Oil Flow1,6 l/min (100 in³/min)

Stroke27.9 mm (1.1 in)

Manifold O-Ring (ARP No)568-011

Model Type2600 lbs, D/A, Left, 0.5 in. Clamp Stroke

Dimension D273,2 mm (2.88 in)

Standard Clamp ArmCAS121

Oil Capacity (Unclamp)1.4 in³

Dimension A171,5 mm (6.75 in)

Dimension S52,0 mm (2.048 in)

Product LineWorkholding Tools

Weight1,6 kg (3.5 lbs)

Oil Capacity (Clamp)11,47 cm³ (0.7 in³)

Mounting Thread J.312-24 UNF

Clamping Force11,6 kN (2600 lbs)
