How can I get a price quote for Enerpac STLS352?

You can request a fast quote for Enerpac STLS352 from Yılsa Engineering. Reference part number CEY-937FC77D611C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac STLS352 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac STLS352 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac STLS352?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

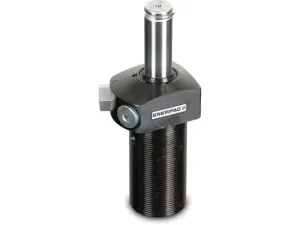

Enerpac STLS352 33.1 kN Threaded Body Swing Clamp

Enerpac STLS352; 33.1 kN force, 16 mm clamp stroke, 350 bar max pressure, 5.5 kg, single-acting left-turning threaded body swing clamp.

EnerpacMFR # STLS352SKU # CEY-937FC77D611C

Dimension GG1/4" mm

Dimension W81,5 mm

Country of OriginUnited States

Dimension F38 mm

Maximum Operating Pressure350 bar

Dimension T83 mm

Have questions?Chat on WhatsApp

About This Product

STLS352 is a single-acting, left-turning, threaded body hydraulic swing clamp in the Enerpac ST series. It provides 33.1 kN of clamping force, with a total stroke of 32.6 mm and a clamp stroke of 16 mm. Operating pressure ranges from 35 to 350 bar. Maximum oil flow is 3.9 L/min, effective clamp-side area is 12.39 cm² and clamp oil capacity is 37.20 cm³. Body thread is M80 x 2 and port connection is G1/4. Swing angle is 45 degrees; flange nut is FN802, mounting flange is MF802 and the standard clamp arm is CAS352. Weight is 5.5 kg. The threaded body screws directly into the fixture with adjustable height. It is used for workpiece clamping in machine tool fixtures. Country of origin is the United States.

Features and Benefits

M80 x 2 body thread for precise height positioning
33.1 kN clamping force with a 35–350 bar operating range
G1/4 threaded port connection
16 mm clamp stroke, 32.6 mm total stroke
Works with FN802 flange nut, MF802 mounting flange and CAS352 clamp arm

Enerpac STLS352

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension GG1/4" mm

Dimension W81,5 mm

Country of OriginUnited States

Dimension F38 mm

Maximum Operating Pressure350 bar

Dimension T83 mm

ApplicationsClamp

Dimension DM80 x 2 mm

Dimension K40 mm

Clamping Stroke16 mm

Dimension Z45 degrees

Dimension J165 mm

Product TypeSwing Clamp - Threaded Body

Dimension Y22.5 degrees

Dimension H13 mm

SeriesST

Dimension C167,5 mm

Cylinder Effective Area (Clamp)12,39 cm²

Dimension N39,9 mm

Maximum Oil Flow3,9 l/min

Dimension C232,0 mm

Dimension M27,9 mm

Standard Clamp ArmCAS352

Stroke32.6 mm

Minimum Operating Pressure35 bar

Product LineWorkholding Tools

Weight5,5 kg

Dimension C35,1 mm

Oil Capacity (Clamp)37,20 cm³

Dimension B105 mm

Dimension QM16 x 2 mm

Dimension D188,4 mm

Dimension A186 mm

Dimension P68 mm

Dimension D280 mm

Clamping Force33,1 kN

Documents & CAD

Series documents 1· shared by this product series

BrochureWorkholding Swing Clamps, EnglishPDF·1.8 MB

CAD Files 5

3D Model
