Enerpac STLD22 2.2 kN Swing Clamp

Enerpac STLD22; 2.2 kN force, 16.5 mm stroke, 350 bar, double-acting, left-turning M28 x 1.5 threaded body hydraulic swing clamp.

EnerpacMFR # STLD22SKU # YLSKJZ6DW7IWCE1

Dimension GG1/8" mm

Country of OriginNetherlands

Dimension F10 mm

Oil Capacity (Unclamp)2,46 cm³

Maximum Operating Pressure350 bar

Dimension T31 mm

Have questions?Chat on WhatsApp

About This Product

STLD22 is a compact, double-acting, left-turning threaded body hydraulic swing clamp from the ST series. It delivers 2.2 kN force with a 16.5 mm total stroke and 8 mm clamping stroke, a maximum operating pressure of 350 bar and a minimum operating pressure of 35 bar. Maximum oil flow is 0.2 L/min and weight is 0.5 kg. Oil capacity is 1.31 cm³ for clamp and 2.46 cm³ for unclamp. Body thread is M28 x 1.5, port is G1/8", flange nut is FN282, mounting flange is MF282 and the standard clamp arm is CAS22. Country of origin is the Netherlands. It is used in light-duty workholding and fixture applications.

Features and Benefits

2.2 kN force, 350 bar maximum pressure
16.5 mm stroke, 8 mm clamping stroke
M28 x 1.5 body thread for precise height positioning
G1/8" threaded port connection
Standard clamp arm CAS22, flange nut FN282
Light 0.5 kg weight

Enerpac STLD22

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension GG1/8" mm

Country of OriginNetherlands

Dimension F10 mm

Oil Capacity (Unclamp)2,46 cm³

Maximum Operating Pressure350 bar

Dimension T31 mm

ApplicationsClamp

Dimension DM28 x 1,5 mm

Dimension K16 mm

Clamping Stroke8 mm

Dimension Z50 degrees

Dimension J153 mm

Product TypeSwing Clamp - Threaded Body

Dimension Y25 degrees

Cylinder Effective Area (Unclamp)1,55 cm²

Dimension H10 mm

SeriesST

Dimension C143,0 mm

Cylinder Effective Area (Clamp)0,77 cm²

Dimension N15,5 mm

Maximum Oil Flow0,2 l/min

Dimension C224,9 mm

Standard Clamp ArmCAS22

Stroke16.5 mm

Minimum Operating Pressure35 bar

Product LineWorkholding Tools

Weight0,5 kg

Dimension C26,4 mm

Oil Capacity (Clamp)1,31 cm³

Dimension B59 mm

Dimension QM6 x 1 mm

Dimension D139,4 mm

Dimension A112 mm

Dimension P24 mm

Dimension D233 mm

Clamping Force2,2 kN

Documents & CAD

Series documents 2· shared by this product series

Instruction ManualSwing CylinderPDF·785 KB 4 languages· in one file

BrochureWorkholding Swing Clamps, EnglishPDF·1.8 MB

CAD Files 5

3D Model

Alternative Names & Search Terms

STLD22STLD-22STLD 22Enerpac STLD22Enerpac STLD-22STLD22 swing clampSTLD22 hydraulic clampEnerpac ST seriesEnerpac ST series swing clampthreaded body swing clampdouble acting swing clampleft turning swing clamphydraulic swing clamp2.2 kN swing clampcompact hydraulic swing clamp16.5 mm stroke swing clampM28 x 1.5 threaded body clamphydraulic fixture clampFN282 flange nut clampCAS22 clamp arm swing clamp

Cookie Notice

Enerpac STLD22 2.2 kN Swing Clamp

About This Product

Features and Benefits

Enerpac STLD22

Specifications

Documents & CAD

Series documents 2· shared by this product series

CAD Files 5

Related Products

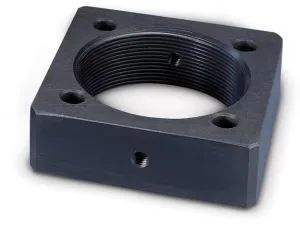

Enerpac MF282 M28 x 1.5 Mounting Flange

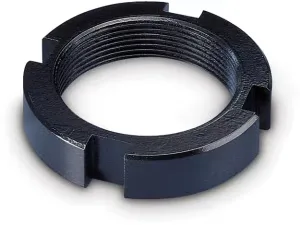

Enerpac FN282 M28 x 1.5 Flange Nut
