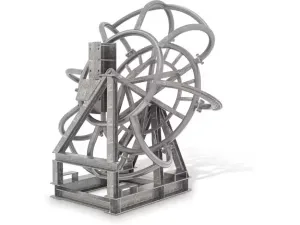

Enerpac SRCS1 Strand Recoiler 7 Strands

Enerpac SRCS1; strand jack strand recoiler accessory for up to 7 strands, 433 kg (977 lb) weight.

EnerpacMFR # SRCS1SKU # CEY-7B4B2D990B6F

Dimension E1800 mm (70.9 in)

Dimension D1000 mm (39.4 in)

Dimension C1762 mm (69.4 in)

Strand Capacity (0.71")1835 ft

Strand Capacity (18 mm)560 m

Product TypeStrand Recoiler

Have questions?Chat on WhatsApp

About This Product

SRCS1 is a strand recoiler from the SRCS series in Enerpac's Heavy Lifting Technology line. It passively pays in or pays out strands while jacking and lowering with a strand jack. It handles up to 7 strands. Capacity is listed as 560 m (1835 ft) for 18 mm strand and 700 m (2295 ft) for 15.7 mm strand. Dimensions: A 1929 mm, C 1762 mm, D 1000 mm, E 1800 mm; weight 433 kg (977 lb). The unit must be used in combination with an Enerpac strand guide. It is intended for heavy lifting and lowering applications with strand jacks.

Features and Benefits

Passively pays in or pays out strands while jacking and lowering
Must be used in combination with an Enerpac strand guide
Maximum of 7 strands
560 m capacity for 18 mm strand, 700 m for 15.7 mm strand
433 kg (977 lb) weight; main dimensions 1929 x 1000 x 1800 mm

Enerpac SRCS1

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E1800 mm (70.9 in)

Dimension D1000 mm (39.4 in)

Dimension C1762 mm (69.4 in)

Strand Capacity (0.71")1835 ft

Strand Capacity (18 mm)560 m

Product TypeStrand Recoiler

Strand Capacity (15.7 mm)700 m (2295 ft)

Max. Number of Strands7

SeriesSRCS

Dimension A1929 mm (75.9 in)

Product LineHeavy Lifting Technology

Weight433 kg (977 lbs)

Documents & CAD

For this product 1

Instruction ManualRecoilerPDF·1.2 MB·English

Series documents 1· shared by this product series

BrochureHSL-Series_Strand_Jacks_Pumps_Accessories_EN-GBPDF·1.5 MB

CAD Files 2

3D Model
