Enerpac SPD563

Photo may not represent actual item. Refer to name and product specs for all details.

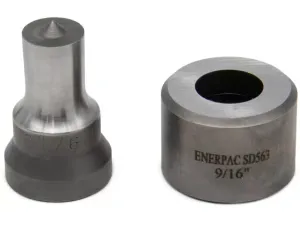

Enerpac SPD563 Ø14.3 mm Punch & Die Set

Enerpac SPD563; 14.3 mm (0.56 in) round hole, 35 ton capacity, SP35 punch and die set.

EnerpacMFR # SPD563SKU # CEY-55221B150050
Hole ShapeCircle
Country of OriginUnited States
Length31,8 mm (1.25 in)
Max. Punching Thickness (Structural A36)12,7 mm (0.50 in)
Hole Size0.56 in
Max. Punch Thickness (Hot Rolled C1050)11,2 mm
Share
Have questions?Chat on WhatsApp

About This Product

SPD563 is a punch and die set from the SP35 die set group that produces a 14.3 mm (0.56 in) round hole. Its capacity is 35 tons (approx. 311 kN) and the bolt size is 1/2 in. The set measures 31.8 x 31.8 mm in cross-section, is 37.5 mm high and weighs 0.18 kg. Maximum punchable thickness is 12.7 mm in structural A36 steel, boiler plate and mild A7 steel, and 11.2 mm in 304 hot rolled stainless steel. It is used for punching sheet and profile material in metal fabrication, structural steel and maintenance work. Country of origin is the United States.

Features and Benefits

  • 14.3 mm (0.56 in) round hole
  • 35 ton (approx. 311 kN) capacity
  • Punches up to 12.7 mm in A36 steel and boiler plate
  • Compact size: 31.8 x 31.8 x 37.5 mm
  • Lightweight: 0.18 kg

Enerpac SPD563

  • Genuine, certified Enerpac product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Hole ShapeCircle
Country of OriginUnited States
Length31,8 mm (1.25 in)
Max. Punching Thickness (Structural A36)12,7 mm (0.50 in)
Hole Size0.56 in
Max. Punch Thickness (Stainless Annealed)11,2 mm (0.44 in)
Max. Punching Thickness (Hot Rolled C1095 Annealed)9,7 mm
Max. Punch Thickness (Hot Rolled C1050)11,2 mm
Product TypePunch and Die Set
Hole Size14,3 mm
Width31,8 mm (1.25 in)
Max. Punching Thickness (Hot Rolled C1050)0.44 in
SeriesSPD
Max. Punching Thickness (Stainless 304 Hot Rolled)11,2 mm (0.44 in)
Bolt Size1/2" in
Max. Punching Thickness (Boiler Plate)12,7 mm (0.50 in)
Max. Punching Thickness (Corten ASTM A242)11,2 mm
Max. Punch Thickness (Hot Rolled Annealed C1095)0.38 in
Capacity35 ton
Max. Punch Thickness (Corten ASTM A242)0.44 in
Max. Punching Thickness (Mild Steel A7)12,7 mm (0.50 in)
Product LineIndustrial Tools
Height37,5 mm (1.48 in)
Weight0.18 kg (0.4 lbs)
Max. Punch Thickness (Cold Rolled C1018)0.50 in
Max. Punching Thickness (Stainless 316 Cold Rolled)11,2 mm
Max. Punching Thickness (Hot Rolled C1095)6,4 mm (0.25 in)
Max. Punch Thickness (Stainless 316 Cold Rolled)0.44 in
Max. Punching Thickness (Cold Rolled C1018)12,7 mm
