How can I get a price quote for Enerpac SPD188?

You can request a fast quote for Enerpac SPD188 from Yılsa Engineering. Reference part number CEY-7B4B2D9960C1. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac SPD188 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac SPD188 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac SPD188?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

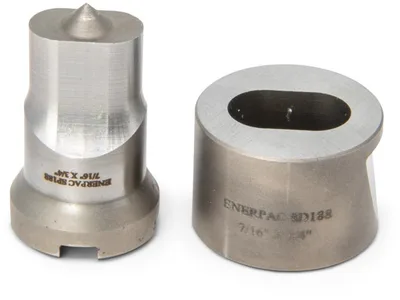

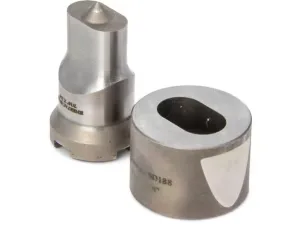

Enerpac SPD188 Punch Die Set 11.1 x 19 mm

Enerpac SPD188; 11.1 x 19 mm oblong hole punch and die set for 35 ton SP35, punching up to 9.7 mm structural steel.

EnerpacMFR # SPD188SKU # CEY-7B4B2D9960C1

Hole ShapeOblong

Country of OriginUnited States

Length31,8 mm (1.25 in)

Max. Punching Thickness (Structural A36)9,7 mm (0.38 in)

Hole Size.44 x .75 in

Max. Punch Thickness (Hot Rolled C1050)7,9 mm

Have questions?Chat on WhatsApp

About This Product

SPD188 is an oblong-hole punch and die set from the Enerpac SPD series, described as an SP35 die set. Hole size is 11.1 x 19 mm (0.44 x 0.75 in), bolt size 3/8 in. Capacity is 35 ton. Maximum material thickness to be punched: 9.7 mm for structural A36, 11.2 mm for mild A7 and boiler plate, 7.9 mm for stainless 304 hot rolled, 7.9 mm for hot rolled C1095 annealed. Dimensions are 31.8 x 31.8 x 38.1 mm; weight 0.54 kg. It is used with a hydraulic punch to make oblong holes in sheet metal and sections.

Features and Benefits

Oblong hole shape; 11.1 x 19 mm hole size
SP35 die set with 35 ton capacity
Maximum thickness 9.7 mm in structural A36, 11.2 mm in boiler plate
3/8 in bolt size
Compact: 31.8 x 31.8 x 38.1 mm, 0.54 kg

Enerpac SPD188

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Hole ShapeOblong

Country of OriginUnited States

Length31,8 mm (1.25 in)

Max. Punching Thickness (Structural A36)9,7 mm (0.38 in)

Hole Size.44 x .75 in

Max. Punch Thickness (Stainless Annealed)7,9 mm (0.31 in)

Max. Punching Thickness (Hot Rolled C1095 Annealed)7,9 mm

Max. Punch Thickness (Hot Rolled C1050)7,9 mm

Product TypePunch and Die Set

Hole Size11,1 x 19 mm

Width31,8 mm (1.25 in)

Max. Punching Thickness (Hot Rolled C1050)0.31 in

SeriesSPD

Max. Punching Thickness (Stainless 304 Hot Rolled)7,9 mm (0.31 in)

Bolt Size3/8" in

Max. Punching Thickness (Boiler Plate)11,2 mm (0.44 in)

Max. Punching Thickness (Corten ASTM A242)9,7 mm

Max. Punch Thickness (Hot Rolled Annealed C1095)0.31 in

Capacity35 ton

Max. Punch Thickness (Corten ASTM A242)0.38 in

Max. Punching Thickness (Mild Steel A7)11,2 mm (0.44 in)

Product LineIndustrial Tools

Height38,1 mm (1.50 in)

Weight0.54 kg (1.2 lbs)

Max. Punch Thickness (Cold Rolled C1018)0.38 in

Max. Punching Thickness (Stainless 316 Cold Rolled)7,9 mm

Metric Bolt SizeM10

Max. Punching Thickness (Hot Rolled C1095)4,8 mm (0.19 in)

Max. Punch Thickness (Stainless 316 Cold Rolled)0.31 in

Max. Punching Thickness (Cold Rolled C1018)9,7 mm

Documents & CAD

Series documents 1· shared by this product series

BrochureSP-Series 35 ton Lightweight Hydraulic Punch; EnglishPDF·274 KB
