How can I get a price quote for Enerpac SLRD92?

You can request a fast quote for Enerpac SLRD92 from Yılsa Engineering. Reference part number CEY-7B4B2D99420B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac SLRD92 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac SLRD92 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac SLRD92?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

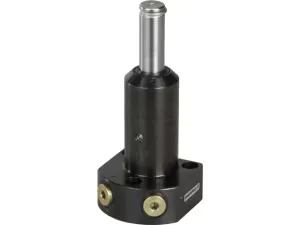

Enerpac SLRD92 9.0 kN Swing Clamp

Enerpac SLRD92; 2025 lbs (≈9.0 kN) force, 12 mm clamping stroke, 350 bar, double-acting right-turning lower flange hydraulic swing clamp.

EnerpacMFR # SLRD92SKU # CEY-7B4B2D99420B

Dimension N26,4 mm (1.04 in)

Dimension GG1/4" mm

Mounting StyleLower Flange

Country of OriginUnited States

Dimension F25,0 mm (0.98 in)

Dimension D47,9 mm (1.88 in)

Have questions?Chat on WhatsApp

About This Product

The SLRD92 is a double-acting, right-turning, lower flange swing clamp from the Enerpac SLR series in the Workholding product line. Rated force is 2025 lbs (≈9.0 kN) with a 12 mm clamping stroke. Operating pressure ranges from 500 psi up to 350 bar (≈35–350 bar). The port is G1/4" and the mounting thread is M10 x 1.5. Unclamp oil capacity is 17.70 cm³ and the unclamp-side effective area is 8.06 cm². The lower flange body is bolted to the fixture and does not require machined fixture holes. It is used for holding workpieces in machining and fixture applications.

Features and Benefits

Flexible design allows manifold or threaded port connection
No fixture hole preparation required
Easiest mounting preparation in the swing cylinder line
Symmetrical rectangular flange enables clamping at three sides of the cylinder
30, 45 and 60 degree swing angles available on request

Enerpac SLRD92

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension N26,4 mm (1.04 in)

Dimension GG1/4" mm

Mounting StyleLower Flange

Country of OriginUnited States

Dimension F25,0 mm (0.98 in)

Dimension D47,9 mm (1.88 in)

Dimension V6,5 mm (0.26 in)

Minimum Depth J215,0 mm

Oil Capacity (Unclamp)17,70 cm³

Dimension C104,1 mm (4.1 in)

Dimension P45,1 mm (1.78 in)

Dimension U42,0 mm (1.65 in)

Maximum Operating Pressure350 bar (5,000 psi)

Cylinder Effective Area (Unclamp)8,06 cm² (1.25 in²)

Dimension T56,0 mm (2.21 in)

Dimension QM10 x 1,5 mm

ApplicationsClamp

Dimension K25,0 mm (0.99 in)

Clamping Stroke12 mm (0.47 in)

Minimum Operating Pressure35 bar (500 psi)

Dimension H12,5 mm (0.49 in)

Product TypeSwing Clamp - Lower Flange

Rotation DirectionRight

Dimension M0.59 in

Dimension X28,6 mm (1.128 in)

Return TypeDouble-Acting

SeriesSLR

Dimension D170,0 mm (2.76 in)

Dimension C1127,1 mm (5.01 in)

Cylinder Effective Area (Clamp)3,16 cm² (0.49 in²)

Maximum Oil Flow1,0 l/min (60 in³/min)

Stroke23 mm (0.9 in)

Manifold O-Ring (ARP No)4,32 x 3,53

Dimension D254,0 mm (2.13 in)

Standard Clamp ArmCAS92

Oil Capacity (Unclamp)1.08 in³

Dimension A152,2 mm (5.99 in)

Dimension S23,7 mm (0.934 in)

Dimension R26,0 mm (1.02 in)

Product LineWorkholding Tools

Weight2,0 kg (4.4 lbs)

Oil Capacity (Clamp)6,88 cm³ (0.42 in³)

Mounting Thread JM6 x 1,0

Clamping Force9,0 kN (2025 lbs)

Documents & CAD

Series documents 2· shared by this product series

Repair Parts Sheet9 kN Swing CylindersPDF·158 KB·English

BrochureWorkholding Swing Clamps, EnglishPDF·1.8 MB

CAD Files 5

3D Model
