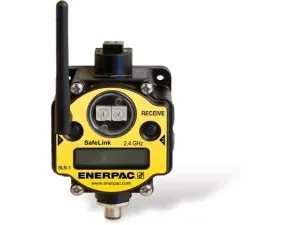

Enerpac SLR1 SafeLink RECEIVE Unit

Enerpac SLR1; SafeLink wireless RECEIVE unit with external antenna, 2.4 GHz, IP67, 10–30 VDC input, +24 VDC outputs, Modbus RTU RS485.

EnerpacMFR # SLR1SKU # CEY-55221B1180AF

FCC RatingFCC Part 15, Subpart C, 15.427

Country of OriginUnited States

Outputs+24

Wireless Monitoring Outputs+24 VDC - NMOS Sinking

Additional Receiver Outputs24 VDC - Max from Reciever: 6

Transmit Power21 dBm conducted

Have questions?Chat on WhatsApp

About This Product

The SLR1 is the RECEIVE unit with external antenna of the Enerpac SafeLink wireless communication system. SafeLink provides wireless communication between the fixture-mounted SEND unit and the RECEIVE unit interfaced with the machine control. A pressure switch on the fixture monitors the circuit pressure. If it opens, the RECEIVE unit passes the changed status to the machine control via 24 VDC, Modbus RTU RS485, Ethernet IP or Modbus TCP/IP. An ETHERNET BRIDGE is available to convert Modbus RTU RS485 to Ethernet. The unit operates at 2.4 GHz with 21 dBm conducted transmit power and an IP67 rating. Input power of +10 to +30 VDC is supplied by the machine control. It is used to monitor the pressure status of hydraulic workholding circuits on fixtures.

Features and Benefits

Wireless communication between the fixture SEND unit and the machine control
Modbus RTU RS485, Ethernet IP and Modbus TCP/IP protocol support
+24 VDC NMOS sinking outputs; up to 6 outputs from the receiver
IP67: dust tight, immersion up to 1 m
2.4 GHz global standard radio frequency, 21 dBm transmit power
+10 to +30 VDC input, supplied by the machine control

Enerpac SLR1

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

FCC RatingFCC Part 15, Subpart C, 15.427

Country of OriginUnited States

Outputs+24

Wireless Monitoring Outputs+24 VDC - NMOS Sinking

Additional Receiver Outputs24 VDC - Max from Reciever: 6

Transmit Power21 dBm conducted

IP RatingIP 67 - Dust tight, immersion up to 1 meter

Product LineWorkholding Tools

Radio Frequency2.4 GHz - Global Standard

Receiver Unit Input Power+10 VDC to +30 VDC - Supplied by machine control

Receiver Communication ProtocolsModbus RTU RS485 - Ethernet IP - Modbus TCP/IP

Product TypeSafeLink Receive Unit

SeriesSLR1

Documents & CAD

For this product 1

CertificateEC2A-WH-SAFELINK_RevB_Oct2022PDF·406 KB

Series documents 2· shared by this product series

Instruction ManualSafeLink Pallet Monitoring SystemPDF·6.2 MB·English

BrochureWorkholding FMS Palletized Fixture Components, EnglishPDF·1.4 MB

CAD Files 3

3D Model
