How can I get a price quote for Enerpac SLLS22?

You can request a fast quote for Enerpac SLLS22 from Yılsa Engineering. Reference part number CEY-7B4B2D99FBF3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac SLLS22 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac SLLS22 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac SLLS22?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

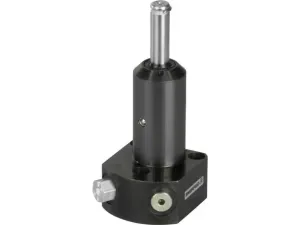

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac SLLS22 2.1 kN Swing Clamp

Enerpac SLLS22; 2.1 kN clamping force, 16.5 mm stroke (8 mm clamping stroke), 350 bar max pressure, single-acting left-turning lower flange swing clamp.

EnerpacMFR # SLLS22SKU # CEY-7B4B2D99FBF3

Dimension GG1/8" mm

Country of OriginUnited States

Dimension F10,0 mm

Dimension V5,8 mm

Dimension U40,1 mm

Maximum Operating Pressure350 bar

Have questions?Chat on WhatsApp

About This Product

SLLS22 is a single-acting, left-turning, lower flange swing clamp in the Enerpac SLL series. It delivers 2.1 kN of clamping force with a 16.5 mm total stroke and an 8 mm clamping stroke. The operating pressure range is 35–350 bar. The standard clamp arm is CAS22. The hydraulic port is G1/8 and the mounting thread is M6 x 1. Clamp oil capacity is 1.31 cm³, maximum oil flow is 0.2 L/min and weight is 0.5 kg. The swing angle is listed as 60 degrees. The lower flange body is bolted to the fixture. It suits machining fixtures and general workholding applications.

Features and Benefits

2.1 kN clamping force, 35–350 bar operating pressure
16.5 mm total stroke, 8 mm clamping stroke
Lower flange mounting: bolts to the fixture
G1/8 hydraulic port, M6 x 1 mounting thread
Used with the standard CAS22 clamp arm
Lightweight body: 0.5 kg

Enerpac SLLS22

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension GG1/8" mm

Country of OriginUnited States

Dimension F10,0 mm

Dimension V5,8 mm

Dimension U40,1 mm

Maximum Operating Pressure350 bar

Dimension T31,0 mm

ApplicationsClamp

Dimension D27,9 mm

Dimension K16,0 mm

Clamping Stroke8 mm

Dimension Z60 degrees

Product TypeSwing Clamp - Lower Flange

Dimension Y30 degrees

Dimension H13,5 mm

Dimension X18,1 mm

SeriesSLL

Dimension C196,1 mm

Cylinder Effective Area (Clamp)0,77 cm²

Dimension N15,5 mm

Maximum Oil Flow0,2 l/min

Standard Clamp ArmCAS22

Stroke16.5 mm

Minimum Operating Pressure35 bar

Dimension S21,0 mm

Product LineWorkholding Tools

Weight0,5 kg

Dimension C79,5 mm

Oil Capacity (Clamp)1,31 cm³

Dimension QM6 x 1 mm

Dimension D147,2 mm

Dimension A112,1 mm

Dimension P24,5 mm

Dimension D245,0 mm

Clamping Force2,1 kN

Documents & CAD

Series documents 2· shared by this product series

Instruction ManualSwing CylinderPDF·785 KB 4 languages· in one file

BrochureWorkholding Swing Clamps, EnglishPDF·1.8 MB

CAD Files 5

3D Model
