How can I get a price quote for Enerpac SLLD121?

You can request a fast quote for Enerpac SLLD121 from Yılsa Engineering. Reference part number CEY-55221B14FF7C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac SLLD121 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac SLLD121 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac SLLD121?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

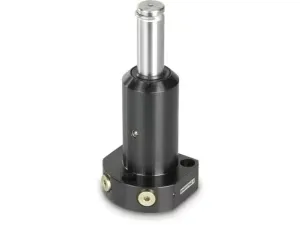

Enerpac SLLD121 11.6 kN Swing Clamp

Enerpac SLLD121; 11.6 kN (2600 lbs) force, 13 mm clamping stroke, 350 bar (5,000 psi) max pressure, double-acting left-turning lower flange swing clamp.

EnerpacMFR # SLLD121SKU # CEY-55221B14FF7C

Dimension N25,1 mm (0.99 in)

Dimension GSAE #4

Mounting StyleLower Flange

Country of OriginUnited States

Dimension F22,2 mm (0.87 in)

Dimension D47,5 mm (1.87 in)

Have questions?Chat on WhatsApp

About This Product

SLLD121 is a double-acting, left-turning model in the SLL series of lower flange swing clamps. It delivers 11.6 kN (2600 lbs) of force with a 13 mm clamping stroke and a maximum operating pressure of 350 bar; minimum operating pressure is listed as 500 psi (about 34 bar). The design allows manifold or threaded port connection, using an SAE #4 port and a 568-011 manifold O-ring. It is bolted to the fixture without fixture hole preparation. The symmetrical rectangular flange allows clamping on three sides of the cylinder and holding of large parts. It is used in workholding applications.

Features and Benefits

11.6 kN (2600 lbs) clamping force, 13 mm clamping stroke
Maximum operating pressure of 350 bar
Flexible design allows manifold or threaded port connection
No fixture hole preparation required; easy bolt-on mounting
Symmetrical rectangular flange enables clamping on three sides of the cylinder
30, 45 and 60 degree swing angles available on request

Enerpac SLLD121

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension N25,1 mm (0.99 in)

Dimension GSAE #4

Mounting StyleLower Flange

Country of OriginUnited States

Dimension F22,2 mm (0.87 in)

Dimension D47,5 mm (1.87 in)

Dimension V8,8 mm (0.35 in)

Minimum Depth J220,3 mm

Oil Capacity (Unclamp)22,94 cm³

Dimension C113,3 mm (4.46 in)

Dimension P51,4 mm (2.03 in)

Dimension U63,5 mm (2.5 in)

Maximum Operating Pressure350 bar (5,000 psi)

Cylinder Effective Area (Unclamp)7,94 cm² (1.23 in²)

Dimension T61,8 mm (2.44 in)

Dimension Q0,375- 16 UNC mm (.375-16 UNC in)

ApplicationsClamp

Dimension K30,4 mm (1.2 in)

Clamping Stroke13 mm (0.5 in)

Dimension Z60 degrees

Minimum Operating Pressure35 bar (500 psi)

Dimension H15,4 mm (0.61 in)

Product TypeSwing Clamp - Lower Flange

Dimension Y30 degrees

Rotation DirectionLeft

Dimension X18,2 mm (0.717 in)

Return TypeDouble-Acting

SeriesSLL

Dimension D166,4 mm (2.62 in)

Dimension C1141,2 mm (5.56 in)

Cylinder Effective Area (Clamp)4,06 cm² (0.63 in²)

Maximum Oil Flow1,6 l/min (100 in³/min)

Stroke27.9 mm (1.1 in)

Manifold O-Ring (ARP No)568-011

Dimension D273,2 mm (2.88 in)

Standard Clamp ArmCAS121

Oil Capacity (Unclamp)1.4 in³

Dimension A171,5 mm (6.75 in)

Dimension S52,0 mm (2.048 in)

Product LineWorkholding Tools

Weight1,6 kg (3.5 lbs)

Oil Capacity (Clamp)11,47 cm³ (0.7 in³)

Mounting Thread J.312-24 UNF

Clamping Force11,6 kN (2600 lbs)
