How can I get a price quote for Enerpac SL400NJ?

You can request a fast quote for Enerpac SL400NJ from Yılsa Engineering. Reference part number YLSTETTEZDRHYK. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac SL400NJ in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac SL400NJ genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac SL400NJ?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

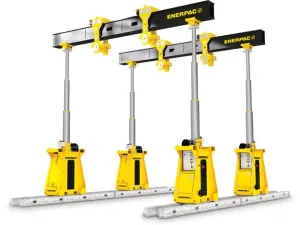

Enerpac SL400NJ 4000 kN Narrow Gantry

Enerpac SL400NJ; 4000 kN (450 ton) narrow body hydraulic gantry with 7700 mm maximum lifting height, 460-480 V 3-phase 50-60 Hz, US plug.

EnerpacMFR # SL400NJSKU # YLSTETTEZDRHYK

Stage 3 Maximum Capacity (4 Legs)220 ton

Country of OriginNetherlands

Stage 1 Maximum Height B4365 mm (14.31 ft)

Maximum Lifting Height7700 mm (25.26 ft)

Stage 3 Max. Capacity (4 Legs)2000 kN

Weight per Leg (with Oil)3600 kg (7937 lbs)

Have questions?Chat on WhatsApp

About This Product

SL400NJ is a narrow body hydraulic gantry from the Enerpac SL series, reaching 4000 kN (450 ton) capacity on 4 legs at stage 1. This version is supplied for 460-480 V, 3-phase, 50-60 Hz with a US plug. Stage 2 capacity on 4 legs is 3000 kN (336 tons). Retracted height is 2725 mm, stage 1 height is 4365 mm, stage 2 height is 6025 mm and maximum lifting height is 7700 mm. Weight per leg with oil is 3600 kg, base length 1700 mm, base width 880 mm and base height 1900 mm. It is used for heavy lifting, lowering and transport tasks where a narrow footprint is required. Country of origin is the Netherlands.

Features and Benefits

4000 kN (450 ton) maximum capacity on 4 legs
460-480 V, 3-phase, 50-60 Hz, US plug version
Narrow body with 7700 mm maximum lifting height
Self-contained hydraulics and electronics
Intelli-Lift wireless control system
Designed and tested to ASME B30.1-2015; Lloyds witness tested to 125% of maximum working load

Enerpac SL400NJ

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stage 3 Maximum Capacity (4 Legs)220 ton

Country of OriginNetherlands

Stage 1 Maximum Height B4365 mm (14.31 ft)

Maximum Lifting Height7700 mm (25.26 ft)

Stage 3 Max. Capacity (4 Legs)2000 kN

Weight per Leg (with Oil)3600 kg (7937 lbs)

ApplicationsLift, Lower, Transport

Retracted Height A2725 mm (8.94 ft)

Base Length D1700 mm (66.93 in)

Base Width E880 mm (34.65 in)

Base Height C1900 mm (74.8 in)

Track Gauge (F)610 mm (24 in)

Product TypeBare Cylinder Gantry

Stage 2 Maximum Height B6025 mm (19.76 ft)

Maximum Capacity (4 Legs)4000 kN (400 ton · 450 ton)

SeriesSL

Beam Plate G400 mm (15.75 in)

Model Type450 Imperial Tons Max Capacity 4 Legs, Retracted Height 8.94 ft, 440-480 VAC US Plug

Stage 1 Max. Capacity (4 Legs)4000 kN (450 ton)

Max. Lifting Height Range5000 - 10000 mm

Beam Plate H580 mm (22.83 in)

Stage 3 Maximum Height B7700 mm (25.26 ft)

Stage 2 Max. Capacity (4 Legs)3000 kN (337 ton)

Product LineHeavy Lifting Technology

Documents & CAD

Series documents 1· shared by this product series

BrochureML-SL-SBL-Series_Hydraulic_Gantries_EN-GBPDF·2.4 MB
