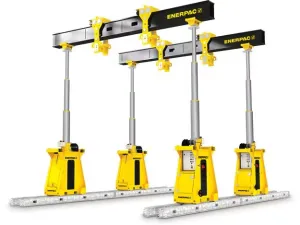

Enerpac SL400N 4000 kN Narrow Body Gantry

Enerpac SL400N; 4000 kN (450 ton) capacity narrow body hydraulic gantry with 7700 mm maximum lifting height, bare cylinder gantry type.

EnerpacMFR # SL400NSKU # YLSR3LSPPVHZUJ6

Stage 3 Maximum Capacity (4 Legs)220 ton

Stage 1 Maximum Height B4365 mm (14.31 ft)

Maximum Lifting Height7700 mm (25.26 ft)

Stage 3 Max. Capacity (4 Legs)2000 kN

Weight per Leg (with Oil)3600 kg (7937 lbs)

Retracted Height A2725 mm (8.94 ft)

Have questions?Chat on WhatsApp

About This Product

SL400N is a narrow body hydraulic gantry from the Enerpac SL series, reaching 4000 kN (450 ton) capacity on 4 legs at stage 1. Stage 2 capacity on 4 legs is 3000 kN (336 tons) and stage 3 is 2000 kN (220 tons). Retracted height is 2725 mm. Lift height is 4365 mm at stage 1, 6025 mm at stage 2 and 7700 mm at stage 3. Weight per leg with oil is 3600 kg, base length 1700 mm, base width 880 mm and base height 1900 mm. It is used for heavy transport and installation tasks where a narrow footprint is required.

Features and Benefits

4000 kN (450 ton) maximum capacity on 4 legs
Narrow body with 880 mm base width
7700 mm maximum lifting height, 2725 mm retracted height
Self-contained hydraulics and electronics
Intelli-Lift wireless control system
Designed and tested to ASME B30.1-2015; Lloyds witness tested to 125% of maximum working load

Enerpac SL400N

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stage 3 Maximum Capacity (4 Legs)220 ton

Stage 1 Maximum Height B4365 mm (14.31 ft)

Maximum Lifting Height7700 mm (25.26 ft)

Stage 3 Max. Capacity (4 Legs)2000 kN

Weight per Leg (with Oil)3600 kg (7937 lbs)

Retracted Height A2725 mm (8.94 ft)

Base Length D1700 mm (66.93 in)

Base Width E880 mm (34.65 in)

Base Height C1900 mm (74.80 in)

Track Gauge (F)610 mm (24 in)

Product TypeBare Cylinder Gantry

Stage 2 Maximum Height B6025 mm (19.76 ft)

Maximum Capacity (4 Legs)4000 kN (400 ton · 450 ton)

SeriesSL

Beam Plate G400 mm (15.75 in)

Model Type450 Imperial Tons Max Capacity 4 Legs, Retracted Height 8.94 ft

Stage 1 Max. Capacity (4 Legs)4000 kN (450 ton)

Max. Lifting Height Range5000 - 10000 mm

Beam Plate H580 mm (22.83 in)

Stage 3 Maximum Height B7700 mm (25.26 ft)

Stage 2 Max. Capacity (4 Legs)3000 kN (337 ton)

Product LineHeavy Lifting Technology

Documents & CAD

Series documents 1· shared by this product series

BrochureML-SL-SBL-Series_Hydraulic_Gantries_EN-GBPDF·2.4 MB
