How can I get a price quote for Enerpac SL400J?

You can request a fast quote for Enerpac SL400J from Yılsa Engineering. Reference part number YLSB85RUAK8A6PS. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac SL400J in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac SL400J genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac SL400J?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

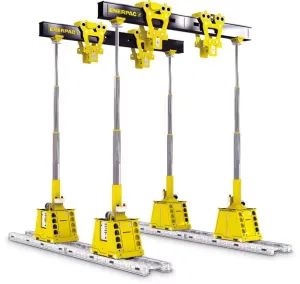

Enerpac SL400J 4000 kN Hydraulic Gantry

Enerpac SL400J; 4000 kN (450 ton) capacity hydraulic gantry with 9140 mm maximum lifting height, 460-480 V 3-phase 50-60 Hz, US plug.

EnerpacMFR # SL400JSKU # YLSB85RUAK8A6PS

Stage 3 Maximum Capacity (4 Legs)208 ton

Country of OriginNetherlands

Stage 1 Maximum Height B5224 mm (17.14 ft)

Maximum Lifting Height9140 mm (29.99 ft)

Stage 3 Max. Capacity (4 Legs)1840 kN

Weight per Leg (with Oil)4600 kg (10,141 lbs)

Have questions?Chat on WhatsApp

About This Product

SL400J is a hydraulic gantry from the Enerpac SL series, reaching 4000 kN (450 ton) capacity on 4 legs at stage 1. This version is supplied for 460-480 V, 3-phase, 50-60 Hz with a US plug. Stage 3 capacity on 4 legs is 1840 kN (208 tons). Retracted height is 3166 mm. Lift height is 5224 mm at stage 1, 7232 mm at stage 2 and 9140 mm at stage 3. Weight per leg with oil is 4600 kg, base length 2023 mm, base width 1289 mm and base height 1378 mm. It is used for heavy lifting tasks such as transporting and installing heavy machines and presses. Country of origin is the Netherlands.

Features and Benefits

4000 kN (450 ton) maximum capacity on 4 legs
460-480 V, 3-phase, 50-60 Hz, US plug version
9140 mm maximum lifting height, 3166 mm retracted height
Self-contained hydraulics and electronics
Intelli-Lift wireless control system
Designed and tested to ASME B30.1-2015; Lloyds witness tested to 125% of maximum working load

Enerpac SL400J

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stage 3 Maximum Capacity (4 Legs)208 ton

Country of OriginNetherlands

Stage 1 Maximum Height B5224 mm (17.14 ft)

Maximum Lifting Height9140 mm (29.99 ft)

Stage 3 Max. Capacity (4 Legs)1840 kN

Weight per Leg (with Oil)4600 kg (10,141 lbs)

ApplicationsLift, Lower, Transport

Retracted Height A3166 mm (10.39 ft)

Base Length D2023 mm (79.65 in)

Base Width E1289 mm (50.75 in)

Base Height C1378 mm (54.25 in)

Track Gauge (F)914 mm (36 in)

Product TypeBare Cylinder Gantry

Stage 2 Maximum Height B7232 mm (23.73 ft)

Maximum Capacity (4 Legs)4000 kN (400 ton · 450 ton)

SeriesSL

Beam Plate G400 mm (15.75 in)

Model Type450 Imperial Tons Max Capacity 4 Legs, Retracted Height 10.39 ft, 440-480 VAC US Plug

Stage 1 Max. Capacity (4 Legs)4000 kN (450 ton)

Max. Lifting Height Range5000 - 10000 mm

Beam Plate H580 mm (22.83 in)

Stage 3 Maximum Height B9140 mm (29.99 ft)

Stage 2 Max. Capacity (4 Legs)4000 kN (450 ton)

Product LineHeavy Lifting Technology

Documents & CAD

Series documents 1· shared by this product series

BrochureML-SL-SBL-Series_Hydraulic_Gantries_EN-GBPDF·2.4 MB
