How can I get a price quote for Enerpac SL300?

You can request a fast quote for Enerpac SL300 from Yılsa Engineering. Reference part number YLSQJYJPCOGOPS8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac SL300 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac SL300 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac SL300?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

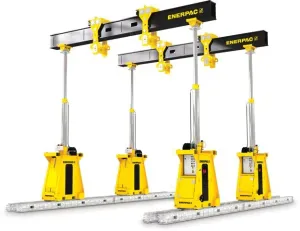

Enerpac SL300 3000 kN Hydraulic Gantry

Enerpac SL300; 3000 kN (337 ton) capacity hydraulic gantry with 6710 mm maximum lifting height, bare cylinder gantry type.

EnerpacMFR # SL300SKU # YLSQJYJPCOGOPS8

Stage 3 Maximum Capacity (4 Legs)- ton

Stage 1 Maximum Height B4615 mm (15.11 ft)

Maximum Lifting Height6710 mm (22.01 ft)

Stage 3 Max. Capacity (4 Legs)- kN

Weight per Leg (with Oil)3250 kg (7,165 lbs)

ApplicationsLift, Lower, Transport

Have questions?Chat on WhatsApp

About This Product

SL300 is a hydraulic gantry from the Enerpac SL series, reaching 3000 kN (337 ton) capacity on 4 legs at stage 1. The source data lists the series as 'SL (discontinued)'. Stage 2 capacity on 4 legs is 2000 kN (224 tons). Retracted height is 2715 mm, stage 1 lift height is 4615 mm and stage 2 lift height is 6710 mm. Weight per leg with oil is 3250 kg, base length 1700 mm, base width 880 mm and base height 1900 mm. It is used for heavy lifting tasks such as loading, installing and transporting machinery and heavy equipment.

Features and Benefits

3000 kN (337 ton) stage 1 capacity on 4 legs
2000 kN (224 ton) at stage 2, 6710 mm lift height
Self-contained hydraulics and electronics
Intelli-Lift wireless control system
Self-propelled wheels or tank rollers
Designed and tested to ASME B30.1-2015; Lloyds witness tested to 125% of maximum working load

Enerpac SL300

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stage 3 Maximum Capacity (4 Legs)- ton

Stage 1 Maximum Height B4615 mm (15.11 ft)

Maximum Lifting Height6710 mm (22.01 ft)

Stage 3 Max. Capacity (4 Legs)- kN

Weight per Leg (with Oil)3250 kg (7,165 lbs)

ApplicationsLift, Lower, Transport

Retracted Height A2715 mm (8.91 ft)

Base Length D1700 mm (66.93 in)

Base Width E880 mm (34.65 in)

Base Height C1900 mm (74.8 in)

Track Gauge (F)610 mm (24 in)

Product TypeBare Cylinder Gantry

Stage 2 Maximum Height B6710 mm (22.01 ft)

Maximum Capacity (4 Legs)3000 kN (300 ton · 337 ton)

SeriesSL (discontinued)

Beam Plate G400 mm (15.75 in)

Model Type337 Imperial Tons Max Capacity 4 Legs, Retracted Height 8.91 ft

Stage 1 Max. Capacity (4 Legs)3000 kN (337 ton)

Max. Lifting Height Range5000 - 10000 mm

Beam Plate H580 mm (22.83 in)

Stage 2 Max. Capacity (4 Legs)2000 kN (220 ton)

Product LineHeavy Lifting Technology

Documents & CAD

For this product 1

Document() (NOT_APPLIC)PDF·622 KB

Series documents 2· shared by this product series

BrochureHLT_Heavy_Lifting_Technology_EN-AUPDF·10.5 MB

BrochureSL-SBL-Series Telescopic Hydraulic Gantries; EnglishPDF·436 KB
