How can I get a price quote for Enerpac SG11TMSTD?

You can request a fast quote for Enerpac SG11TMSTD from Yılsa Engineering. Reference part number CEY-55221B12D881. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac SG11TMSTD in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac SG11TMSTD genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac SG11TMSTD?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

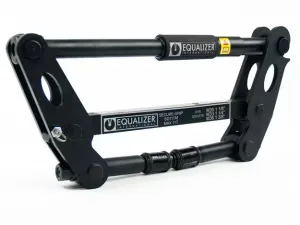

Enerpac SG11TMSTD 110 kN Flange Spreader Set

Enerpac SG11TMSTD; 11 ton (110 kN), 30–39 mm bolt hole, mechanical Secure-Grip flange spreader set.

EnerpacMFR # SG11TMSTDSKU # CEY-55221B12D881

Dimension E462 mm (18.2 in)

Capacity110 kN (11 ton · 12.4 ton)

Country of OriginUnited Kingdom

Dimension F60 mm (2.4 in)

Dimension D90 mm (3.5 in)

Dimension C263 mm (10.4 in)

Have questions?Chat on WhatsApp

About This Product

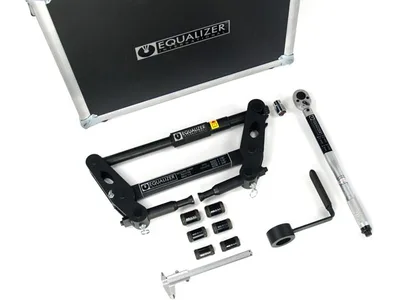

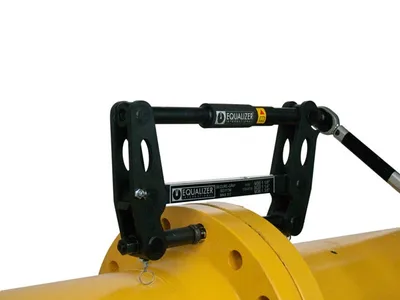

The SG11TMSTD is a mechanical Secure-Grip flange spreader set. It provides 11 tons (110 kN) of spreading force and can be used on all flange types with bolt holes from 30 mm (1.18 in) to 39 mm (1.54 in). The collet holders are supplied with drive cones adjustable outward from the central position. Used in pairs, as recommended, the spreading force reaches 220 kN. Accepted bolt sizes are M30, M33, M36, 1 1/8", 1 1/4" and 1 3/8". Maximum spread is 90 mm (3.54 in). The tool spreads flanges apart to allow removal of a spacer, wafer or butterfly valve. The set includes the SG11TM tool, a 150 mm vernier caliper, a 1/2" drive torque wrench with 24 mm socket, a safety block and M30 collets. Case dimensions are 640 x 540 x 165 mm.

Features and Benefits

11 ton (110 kN) spreading force; 220 kN when used in pairs
Usable on all flange types with 30–39 mm (1.18–1.54 in) bolt holes
Adjustable drive cones allow removal of a spacer, wafer or butterfly valve
Bolt sizes M30, M33, M36, 1 1/8", 1 1/4" and 1 3/8"
Set includes tool, caliper, torque wrench, socket, safety block and collets

Enerpac SG11TMSTD

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E462 mm (18.2 in)

Capacity110 kN (11 ton · 12.4 ton)

Country of OriginUnited Kingdom

Dimension F60 mm (2.4 in)

Dimension D90 mm (3.5 in)

Dimension C263 mm (10.4 in)

Spreader Power SourceMechanical

Case Dimensions640 x 540 x 165 mm (25.2 x 21.3 x 6.5 in)

Dimension B250 mm (9.8 in)

ApplicationsSpread

Usable on Flange Bolt SizesM30, M33, M36, 1 1/8”, 1 1/4”, 1 3/8”

Dimension V Max.60 mm (2.4 in)

Dimension V (Min.)0 in

Dimension F Max.240 mm (9.4 in)

Dimension A2 Min.258 mm (10.2 in)

Bolt Hole Diameter B30-39 mm (1.18-1.54 in)

Tip Clearance0 mm

Product TypeFlange Spreader Set - Secure-Grip

Dimension A1 Min.223 mm (8.8 in)

Dimension C Max.60 mm (2.4 in)

SeriesSG

Dimension V Min.0 mm

Dimension R (Min.)240 mm

Dimension R Min.9.4 in

Dimension A516 mm (20.3 in)

Product LineBolting Tools

Dimension F Min.96 mm (3.8 in)

Weight20 kg (44.1 lbs)

Maximum Spread90 mm

Min. Access Gap A0 in

Max. Operating Torque120 Nm (89 ft-lbs)

Max. Spread3.54 in

Min. Access Gap A0 mm

Documents & CAD

Series documents 2· shared by this product series

Instruction ManualIM_SGM_07.pdfPDF·6.3 MB·English

BrochureSG-Series Secure-Grip Flange Spreaders; EnglishPDF·852 KB
