How can I get a price quote for Enerpac SFP419MD?

You can request a fast quote for Enerpac SFP419MD from Yılsa Engineering. Reference part number YLSM9ILNG3BC1NE. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac SFP419MD in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac SFP419MD genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac SFP419MD?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

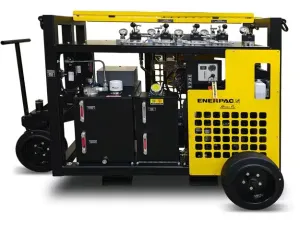

Enerpac SFP419MD 4-Outlet Diesel Pump

Enerpac SFP419MD; 4-outlet, 700 bar (10,000 psi), 18 kW diesel-powered split flow hydraulic pump with 115 L usable oil.

EnerpacMFR # SFP419MDSKU # YLSM9ILNG3BC1NE

Length2057 mm (81 in)

Maximum Operating Pressure700 bar (10,000 psi)

Emission StandardEPA/CARB Tier 4

Valve FunctionAdvance / Hold / Retract

Oil Flow per Outlet at 700 bar1,88 l/min (115 in³/min)

Usable Oil Capacity115 l (30 gal)

Have questions?Chat on WhatsApp

About This Product

The SFP419MD is a diesel-powered split flow hydraulic pump from the SFP-D series. It has 4 outlets, a 4/3 manual valve and 115 L (30 gal) of usable oil. Maximum operating pressure is 700 bar (10,000 psi), and the 18 kW (25 hp) engine meets EPA/CARB Tier 4 emissions. Oil flow per outlet is 1.88 L/min at 700 bar. The valve provides advance / hold / retract functions and works with single- and double-acting cylinders. Dimensions are 2057 x 1041 x 1422 mm and weight is 929 kg. Because it needs no external electrical supply, generator or cabling, it is used for lifting and skidding jobs at remote, temporary and mobile jobsites.

Features and Benefits

4 split-flow outlets for single- and double-acting cylinders
Self-contained diesel power; no external power dependency
Manual valve control with advance / hold / retract function
Adjustable pressure relief valve per circuit
Transport-ready design for easy movement and repositioning
Pressure gauges included; 18 kW diesel engine, Tier 4

Enerpac SFP419MD

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Length2057 mm (81 in)

Maximum Operating Pressure700 bar (10,000 psi)

Emission StandardEPA/CARB Tier 4

Valve FunctionAdvance / Hold / Retract

Oil Flow per Outlet at 700 bar1,88 l/min (115 in³/min)

Usable Oil Capacity115 l (30 gal)

Pump ControlManual

Product TypeDiesel Pump - Split Flow

Width1041 mm (41 in)

Valve OperationManual

Pump Valve Type4-way, 3-position

Motor Size18 kW (25 hp)

SeriesSFP-D

Pump Power SourceDiesel

Number of Outlets4

Cylinder CompatibilitySingle-acting, Double-Acting

Product LineIndustrial Tools

Height1422 mm (56 in)

Weight929 kg (2048 lbs)

Documents & CAD

For this product 17

Instruction ManualHydra Pac - Diesel Split Flow Pump OMMPDF·8.2 MB·English

Instruction ManualInstruction ManualPDF·8.2 MB·Français

BrochureSFP-D Technical brochurePDF·681 KB·中文

BrochureSFP-D Technical brochurePDF·584 KB·Svenska

BrochureSFP-D Technical brochurePDF·586 KB·Română

BrochureSFP-D Technical brochure (PT-BR)PDF·586 KB·Português

BrochureSFP-D Technical brochurePDF·584 KB·Norsk

BrochureSFP-D Technical brochurePDF·588 KB·Polski

BrochureSFP-D Technical brochurePDF·686 KB·日本語

BrochureSFP-D Technical brochurePDF·631 KB·한국어

BrochureSFP-D Technical brochurePDF·582 KB·Suomi

BrochureSFP-D Technical brochurePDF·585 KB·Español

BrochureSFP-D Technical brochure (EN-US)PDF·583 KB·English

BrochureSFP-D Technical brochure (ES-LA)PDF·586 KB·Español

BrochureSFP-D Technical brochure (EN-GB)PDF·583 KB·English

BrochureSFP-D Technical brochurePDF·587 KB·Deutsch

BrochureSFP-D Technical brochurePDF·587 KB·Čeština

Series documents 6· shared by this product series

Instruction ManualInstruction ManualPDF·8.2 MB·Español

Instruction ManualInstruction ManualPDF·8.2 MB·Português

BrochureSFP-D Technical brochurePDF·584 KB·Nederlands

BrochureSFP-D Technical brochurePDF·585 KB·Italiano

BrochureSFP-D Technical brochurePDF·586 KB·Français

BrochureSFP-D-Series_Diesel-Split-Flow-Pumps_EN-US (EN-US)PDF·583 KB·English
