How can I get a price quote for Enerpac SCR106PGH?

You can request a fast quote for Enerpac SCR106PGH from Yılsa Engineering. Reference part number CEY-55221B12D575. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac SCR106PGH in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac SCR106PGH genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac SCR106PGH?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

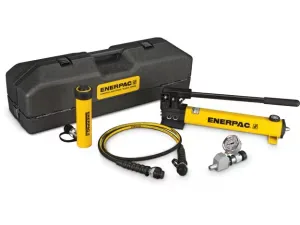

Enerpac SCR106PGH 101 kN Cylinder and Hand Pump Set

Enerpac SCR106PGH; 101 kN (10 ton), 156 mm stroke, 700 bar hydraulic cylinder and hand pump set with RC106 and P392, 14.4 kg.

EnerpacMFR # SCR106PGHSKU # CEY-55221B12D575

Stroke156 mm (6.13 in)

Maximum Operating Pressure700 bar

Product LineIndustrial Tools

Weight14,4 kg

Product TypeCylinder and Hand Pump Set

Cylinder Advance Capacity101 kN

Have questions?Chat on WhatsApp

About This Product

SCR106PGH is a porta power set combining an RC-Series single-acting hydraulic cylinder (RC106) with a two-speed P392 hand pump. The set also includes a GA45GC gauge adaptor and an HC7206C hose. The cylinder has a 101 kN advance capacity, a 156 mm (6.13 in) stroke and a maximum operating pressure of 700 bar. The set weighs 14.4 kg. It is a ready-to-work set for a wide range of applications.

Features and Benefits

Versatile RC-Series cylinder combined with a rugged hand pump
Ready set with RC106, P392, GA45GC and HC7206C components
101 kN capacity with 156 mm stroke
700 bar maximum operating pressure
Set weight 14.4 kg
