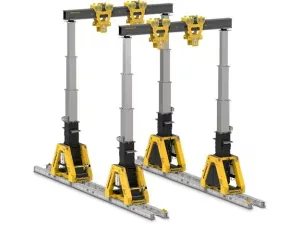

Enerpac SBL600W

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac SBL600W 674 Ton Hydraulic Gantry

Enerpac SBL600W; 674 ton (6000 kN) 4-leg capacity, 10.6 m maximum lifting height, foldable-boom hydraulic gantry with 400 V 3-phase 50 Hz EU plug.

EnerpacMFR # SBL600WSKU # YLS0XJ9HHB8ZU3
Stage 3 Maximum Capacity (4 Legs)416 ton
Country of OriginNetherlands
Stage 1 Maximum Height B6500 mm (21.33 ft)
Maximum Lifting Height10600 mm (34.78 ft)
Stage 3 Max. Capacity (4 Legs)3700 kN
Weight per Leg (with Oil)9000 kg (19,842 lbs)
Share
Have questions?Chat on WhatsApp

About This Product

The SBL600W is a boom-type hydraulic gantry from the SBL series in Enerpac's Heavy Lifting Technology line. It offers a maximum capacity of 674 tons (6000 kN) on 4 legs and reaches a maximum lifting height of 10,600 mm at stage 3. Retracted height is 4300 mm. Stage heights are 6500 mm, 8600 mm and 10,600 mm, with a stage 3 four-leg capacity of 3700 kN. Weight per leg with oil is 9000 kg. The rectangular boom adds strength for capacity and lifting height, and the foldable boom eases transport and setup. It is supplied for 400 V, 3-phase, 50 Hz power with an EU plug. It is used for lifting, lowering and transporting heavy loads.

Features and Benefits

  • 674 ton (6000 kN) maximum capacity on 4 legs
  • Maximum lifting height of 10,600 mm over 3 stages
  • Rectangular boom adds strength for greater capacity and lifting height
  • Foldable boom for easy transport and setup
  • Steel wheels provide optimum load distribution
  • 400 V, 3-phase, 50 Hz, EU plug

Enerpac SBL600W

  • Genuine, certified Enerpac product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Stage 3 Maximum Capacity (4 Legs)416 ton
Country of OriginNetherlands
Stage 1 Maximum Height B6500 mm (21.33 ft)
Maximum Lifting Height10600 mm (34.78 ft)
Stage 3 Max. Capacity (4 Legs)3700 kN
Weight per Leg (with Oil)9000 kg (19,842 lbs)
ApplicationsLift, Lower, Transport
Retracted Height A4300 mm (14.11 ft)
Base Length D3270 mm (128.74 in)
Base Width E1642 mm (64.65 in)
Base Height C2250 mm (88.58 in)
Track Gauge (F)914 mm (36 in)
Product TypeBoom Gantry
Transport Dimension J4012 mm (13.16 ft)
Stage 2 Maximum Height B8600 mm (28.22 ft)
Maximum Capacity (4 Legs)6000 kN (612 ton · 674 ton)
Transport Dimension I2250 mm (7.38 ft)
SeriesSBL
Beam Plate G400 mm (15.75 in)
Model Type674 Imperial Tons Max Capacity 4 Legs, Retracted Height 14.11 ft, 380-415 VAC EU Plug
Stage 1 Max. Capacity (4 Legs)6000 kN (674 ton)
Max. Lifting Height Range>10000 mm
Beam Plate H490 mm (19.29 in)
Stage 3 Maximum Height B10600 mm (34.78 ft)
Stage 2 Max. Capacity (4 Legs)5000 kN (562 ton)
Product LineHeavy Lifting Technology

Documents & CAD

Series documents 1· shared by this product series

BrochureML-SL-SBL-Series_Hydraulic_Gantries_EN-GBPDF·2.4 MB
