Enerpac SBL600

Photo may not represent actual item. Refer to name and product specs for all details.

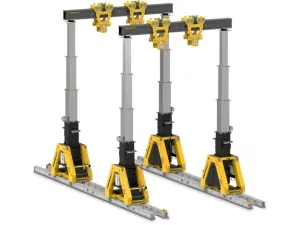

Enerpac SBL600 674 Ton Hydraulic Gantry

Enerpac SBL600; 674 ton (6000 kN) 4-leg capacity, 10600 mm maximum lifting height, hydraulic gantry with foldable boom.

EnerpacMFR # SBL600SKU # YLSZ0SNK8DIPLFZ
Stage 3 Maximum Capacity (4 Legs)416 ton
Stage 1 Maximum Height B6500 mm (21.33 ft)
Maximum Lifting Height10600 mm (34.78 ft)
Stage 3 Max. Capacity (4 Legs)3700 kN
Weight per Leg (with Oil)9000 kg (19,842 lbs)
ApplicationsLift, Lower, Transport
Share
Have questions?Chat on WhatsApp

About This Product

SBL600 is a hydraulic gantry with 674 ton (6000 kN) on 4 legs at stage 1, 562 ton (5000 kN) at stage 2 and 416 ton (3700 kN) at stage 3. Lifting heights are 6500, 8600 and 10600 mm. The rectangular boom adds strength, the foldable boom eases transport and setup, and steel wheels distribute the load. Retracted height is 4300 mm (14.11 ft). It combines high capacity and height in an easy-to-transport package for lifting, lowering and transporting applications.

Features and Benefits

  • Rectangular boom: added strength for capacity and lifting height
  • Foldable boom for easy transport and setup
  • Steel wheels for optimum load distribution
  • 3 stages: 674 / 562 / 416 ton
  • Lifting height 6500 / 8600 / 10600 mm

Enerpac SBL600

  • Genuine, certified Enerpac product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Stage 3 Maximum Capacity (4 Legs)416 ton
Stage 1 Maximum Height B6500 mm (21.33 ft)
Maximum Lifting Height10600 mm (34.78 ft)
Stage 3 Max. Capacity (4 Legs)3700 kN
Weight per Leg (with Oil)9000 kg (19,842 lbs)
ApplicationsLift, Lower, Transport
Retracted Height A4300 mm (14.11 ft)
Base Length D3270 mm (128.74 in)
Base Width E1642 mm (64.65 in)
Base Height C2250 mm (88.58 in)
Track Gauge (F)914 mm (36 in)
Product TypeBoom Gantry
Transport Dimension J4012 mm (13.16 ft)
Stage 2 Maximum Height B8600 mm (28.22 ft)
Maximum Capacity (4 Legs)6000 kN (612 ton · 674 ton)
Transport Dimension I2250 mm (7.38 ft)
SeriesSBL
Beam Plate G400 mm (15.75 in)
Model Type674 Imperial Tons Max Capacity 4 Legs, Retracted Height 14.11 ft
Stage 1 Max. Capacity (4 Legs)6000 kN (674 ton)
Max. Lifting Height Range>10000 mm
Beam Plate H490 mm (19.29 in)
Stage 3 Maximum Height B10600 mm (34.78 ft)
Stage 2 Max. Capacity (4 Legs)5000 kN (562 ton)
Product LineHeavy Lifting Technology

Documents & CAD

For this product 1

BrochureSBL600 Gantry System, EnglishPDF·1.1 MB

Series documents 1· shared by this product series

BrochureML-SL-SBL-Series_Hydraulic_Gantries_EN-GBPDF·2.4 MB
