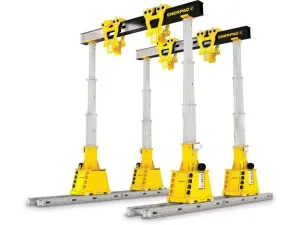

Enerpac SBL500

Photo may not represent actual item. Refer to name and product specs for all details.

Enerpac SBL500 585 Ton Hydraulic Gantry

Enerpac SBL500; 585 ton (5200 kN) 4-leg capacity, 8618 mm maximum lifting height, hydraulic gantry with fixed boom.

EnerpacMFR # SBL500SKU # CEY-7B4B2D99F1C3
Stage 3 Maximum Capacity (4 Legs)337 ton
Stage 1 Maximum Height B4998 mm (16.4 ft)
Maximum Lifting Height8618 mm (28.27 ft)
Stage 3 Max. Capacity (4 Legs)3000 kN
Weight per Leg (with Oil)6880 kg (15,466 lbs)
ApplicationsLift, Lower, Transport
Share
Have questions?Chat on WhatsApp

About This Product

SBL500 is a hydraulic gantry with 585 ton (5200 kN) on 4 legs at stages 1 and 2, and 3000 kN at stage 3. Lifting heights are 4998, 6908 and 8618 mm; retracted height is 3038 mm (9.97 ft). The octagonal boom adds strength; the boom is fixed and uses steel wheels. It suits moving and unloading heavy assets indoors and outdoors. It is listed on the site as a discontinued SBL series model.

Features and Benefits

  • Octagonal boom: added strength for capacity and lifting height
  • Fixed boom and steel wheels
  • 585 ton (5200 kN) at stages 1 and 2
  • Lifting height 4998 / 6908 / 8618 mm
  • Retracted height 3038 mm (9.97 ft)

Enerpac SBL500

  • Genuine, certified Enerpac product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Stage 3 Maximum Capacity (4 Legs)337 ton
Stage 1 Maximum Height B4998 mm (16.4 ft)
Maximum Lifting Height8618 mm (28.27 ft)
Stage 3 Max. Capacity (4 Legs)3000 kN
Weight per Leg (with Oil)6880 kg (15,466 lbs)
ApplicationsLift, Lower, Transport
Retracted Height A3038 mm (9.97 ft)
Base Length D2023 mm (78.39 in)
Base Width E1256 mm (50.43 in)
Base Height C1378 mm (53.74 in)
Track Gauge (F)914 mm (36 in)
Product TypeBoom Gantry
Stage 2 Maximum Height B6908 mm (22.66 ft)
Maximum Capacity (4 Legs)5200 kN (500 ton · 585 ton)
SeriesSBL (discontinued)
Beam Plate G400 mm (15.75 in)
Stage 1 Max. Capacity (4 Legs)5200 kN (585 ton)
Max. Lifting Height Range5000 - 10000 mm
Transport Dimension I- mm
Beam Plate H490 mm (19.29 in)
Stage 3 Maximum Height B8618 mm (28.27 ft)
Transport Dimension J- mm
Stage 2 Max. Capacity (4 Legs)5200 kN (585 ton)
Product LineHeavy Lifting Technology

Documents & CAD

For this product 1

DocumentSBL500_Gantry_03451.50.00.00a (NOT_APPLIC)PDF·462 KB

Series documents 2· shared by this product series

BrochureHLT_Heavy_Lifting_Technology_EN-AUPDF·10.5 MB
BrochureSL-SBL-Series Telescopic Hydraulic Gantries; EnglishPDF·436 KB
