How can I get a price quote for Enerpac RWH200?

You can request a fast quote for Enerpac RWH200 from Yılsa Engineering. Reference part number CEY-937FC77BF4EF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RWH200 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RWH200 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RWH200?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

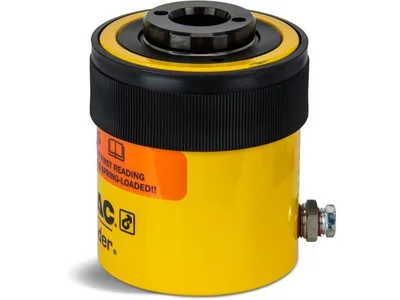

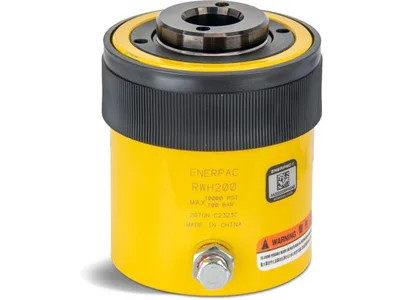

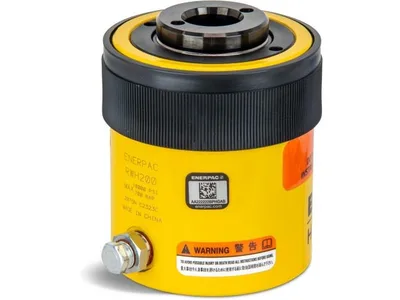

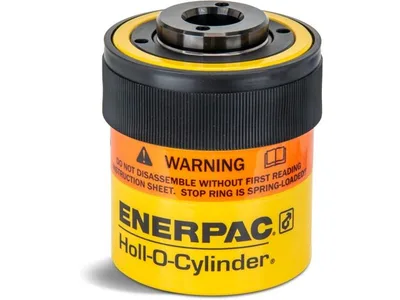

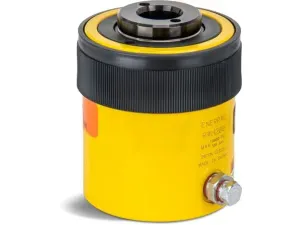

Enerpac RWH200 104.5 kN Hollow Plunger Cylinder

Enerpac RWH200; 104.5 kN (23,500 lbs) capacity, 13.2 mm stroke, 350 bar max pressure, hollow plunger workholding hydraulic cylinder.

EnerpacMFR # RWH200SKU # CEY-937FC77BF4EF

Oil Capacity (Advance)38,84 cm³ (2.37 in³)

Dimension V.375-16 UNC mm

Maximum Operating Pressure350 bar (5,000 psi)

Dimension T22,4 mm (0.88 in)

ApplicationsPush, Pull

Dimension K1.562-16 UN mm (Ø 1.06 in)

Have questions?Chat on WhatsApp

About This Product

RWH200 is a hollow plunger hydraulic cylinder from the RWH workholding series. It has a capacity of 104.5 kN (23,500 lbs) and a stroke of 13.2 mm (0.52 in), and works in push and pull directions. Maximum operating pressure is 350 bar (listed as 5,000 psi), center hole diameter is 26.9 mm, effective area is 4.74 in² (about 30.6 cm²) and advance oil capacity is 38.84 cm³. Weight is about 6.2 kg (13.6 lbs). It is used in fixture and workholding applications that need high force in compact dimensions.

Features and Benefits

Load can be attached to either end for push or pull action, both at full capacity
High capacity in small dimensions allows compact fixture designs
Spring return for easy unloading of the workpiece
Threaded collars and base mounting holes, including table-top surfaces and T-slots
Nickel-plated plungers, wipers and internal venting prevent corrosion

Enerpac RWH200

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Oil Capacity (Advance)38,84 cm³ (2.37 in³)

Dimension V.375-16 UNC mm

Maximum Operating Pressure350 bar (5,000 psi)

Dimension T22,4 mm (0.88 in)

ApplicationsPush, Pull

Dimension K1.562-16 UN mm (Ø 1.06 in)

Product TypeWorkholding Hollow Plunger Cylinder

SeriesRWH

Model Type23500 lbs Capacity, 0.52 in Stroke

Dimension Z9,7 mm (0.38 in)

Dimension J4,8 mm (0.19 in)

Dimension A136,9 mm (5.39 in)

Product LineWorkholding Tools

Weight6,2 kg (13.6 lbs)

Dimension D198,6 mm (3.88 in)

Maximum Cylinder Capacity (Advance)23,500 lbs

Country of OriginChina

Max. Cylinder Capacity Range10,000 - 19,999 lbs

Dimension F53,8 mm (2.12 in)

Dimension D3.875-12 UN mm

Center Hole Diameter Y26,9 mm (1.06 in)

Cylinder Effective Area (Advance)30,58 cm² (4.74 in²)

Dimension U82,6 mm (3.25 in)

Dimension B124,0 mm (4.88 in)

Plunger TypeHollow

Cylinder MaterialSteel

Dimension H19,1 mm (0.75 in)

Maximum Cylinder Capacity (Advance)104,6 kN

Stroke13.2 mm (0.52 in)

Dimension W38,1 mm (1.5 in)

Return TypeSingle-Acting, Spring Return

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetCylinder - 20 TonPDF·45 KB·English

BrochureWorkholding Cylinders, EnglishPDF·4.2 MB

CAD Files 5

3D Model
