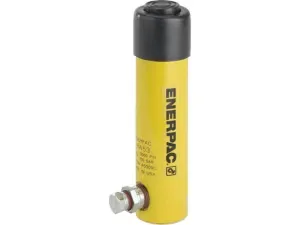

Enerpac RW53 22.1 kN 80 mm Cylinder

Enerpac RW53; 22.1 kN (4,970 lbs) capacity, 80.5 mm stroke, 350 bar max pressure, cylindrical general purpose workholding hydraulic cylinder.

EnerpacMFR # RW53SKU # CEY-7B4B2D99517A

Dimension C6.25 in

Maximum Operating Pressure350 bar (10,000 psi)

ApplicationsPush

Minimum Operating Pressure600 psi

Product TypeWorkholding General Purpose Cylinder

Dimension G.250-18 in

Have questions?Chat on WhatsApp

About This Product

RW53 is a cylindrical, general purpose push-type hydraulic cylinder from the RW workholding series. It delivers 22.1 kN (4,970 lbs) at 5,000 psi (about 345 bar) with a stroke of 80.5 mm (3.17 in). Maximum operating pressure is 350 bar (10,000 psi) and minimum operating pressure is 600 psi (about 41 bar). It has a solid plunger and a steel body, weighs about 1.4 kg (3.1 lbs) and has an effective area of 0.99 in² (about 6.4 cm²). Its long stroke in a compact body suits welding fixtures and other workholding applications.

Features and Benefits

Cylindrical body; high pressure design for applications needing additional force
Long stroke in a compact design, well suited for welding applications
Collar mounting threads and base mounting holes for flexible mounting
Hardened saddle protects the plunger; snap-in saddle is easily removed to adapt to other plunger devices
Chrome plated plunger with bronze upper and lower bearings for long cylinder life

Enerpac RW53

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension C6.25 in

Maximum Operating Pressure350 bar (10,000 psi)

ApplicationsPush

Minimum Operating Pressure600 psi

Product TypeWorkholding General Purpose Cylinder

Dimension G.250-18 in

Dimension L1.18 in

SeriesRW

Dimension V.250-20 UNC in

Cylinder Capacity Advance at 5000 psi4970 lbs

Dimension J1 in

Dimension A9.73 in

Product LineWorkholding Tools

Weight3.1 lbs

Dimension T0.61 in

Country of OriginChina

Max. Cylinder Capacity Range2,000 - 4,999 lbs

Dimension D1.5 in

Cylinder Effective Area (Advance)0.99 in²

Dimension B6.56 in

Plunger TypeSolid

Dimension Z0.55 in

Cylinder MaterialSteel

Dimension H0.75 in

Dimension F1 in

Dimension D11.500-16 UN in

Stroke3.17 in

Dimension K.750-16UNF in

Oil Capacity (Advance)2.97 in³

Return TypeSingle-Acting, Spring Return

Operating Pressure600 - 10000 psi

Dimension U1 in
