How can I get a price quote for Enerpac RW51?

You can request a fast quote for Enerpac RW51 from Yılsa Engineering. Reference part number CEY-7B4B2D995CF5. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RW51 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RW51 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RW51?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

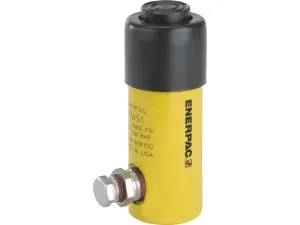

Enerpac RW51 22.1 kN 26 mm Hydraulic Cylinder

Enerpac RW51; 22.1 kN (4,970 lbf) capacity, 26 mm stroke, 350 bar, cylindrical general purpose workholding hydraulic cylinder.

EnerpacMFR # RW51SKU # CEY-7B4B2D995CF5

Dimension C4.09 in

Maximum Operating Pressure350 bar (10,000 psi)

ApplicationsPush

Minimum Operating Pressure600 psi

Product TypeWorkholding General Purpose Cylinder

Dimension G.250-18 in

Have questions?Chat on WhatsApp

About This Product

RW51 is a general purpose hydraulic cylinder from the RW workholding series. It is a cylindrical model working in push direction. It delivers 22.1 kN (4,970 lbf) at 5,000 psi (about 345 bar). Stroke is 26 mm (1.01 in), maximum operating pressure is 350 bar (10,000 psi), weight is 1.0 kg and oil capacity is about 16 cm³. The body is steel with a solid plunger. It is used in workholding fixtures and welding applications.

Features and Benefits

Cylindrical model
High pressure design (350 bar) for applications needing additional force
Long stroke in a compact design, well suited for welding applications
Collar mounting threads and base mounting holes for flexible mounting
Hardened saddle protects the plunger; snap-in design adapts to different plunger devices
Chrome plated plunger with bronze upper and lower bearing for long cylinder life

Enerpac RW51

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension C4.09 in

Maximum Operating Pressure350 bar (10,000 psi)

ApplicationsPush

Minimum Operating Pressure600 psi

Product TypeWorkholding General Purpose Cylinder

Dimension G.250-18 in

Dimension L1.18 in

SeriesRW

Dimension V.250-20 UNC in

Cylinder Capacity Advance at 5000 psi4970 lbs

Dimension J1 in

Dimension A5.42 in

Product LineWorkholding Tools

Weight2.1 lbs

Dimension T0.61 in

Country of OriginChina

Max. Cylinder Capacity Range2,000 - 4,999 lbs

Dimension D1.5 in

Cylinder Effective Area (Advance)0.99 in²

Dimension B4.41 in

Plunger TypeSolid

Dimension Z0.55 in

Cylinder MaterialSteel

Dimension H0.75 in

Dimension F1 in

Dimension D11.500-16 UN in

Stroke1.01 in

Dimension K.750-16UNF in

Oil Capacity (Advance)0.99 in³

Return TypeSingle-Acting, Spring Return

Operating Pressure600 - 10000 psi

Dimension U1 in

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetCylinder - 5 TonPDF·52 KB·English

Repair Parts SheetCylinder - 5 TonPDF·76 KB·English

BrochureWorkholding Cylinders, EnglishPDF·4.2 MB

CAD Files 5

3D Model
