How can I get a price quote for Enerpac RW50?

You can request a fast quote for Enerpac RW50 from Yılsa Engineering. Reference part number CEY-0681555D7D6C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RW50 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RW50 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RW50?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

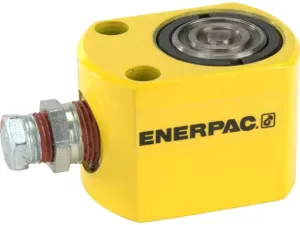

Enerpac RW50 22.1 kN 16 mm Hydraulic Cylinder

Enerpac RW50; 22.1 kN (4,970 lbf) capacity, 16 mm stroke, 700 bar (10,000 psi), block-model general purpose workholding hydraulic cylinder.

EnerpacMFR # RW50SKU # CEY-0681555D7D6C

Dimension G3?8 - 18 mm (.375-18 in)

Oil Capacity (Advance)10,16 cm³ (0.62 in³)

Dimension V5,6 mm (0.22 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsPush

Minimum Operating Pressure40 bar (600 psi)

Have questions?Chat on WhatsApp

About This Product

RW50 is a general purpose hydraulic cylinder from the RW workholding series. It is a block model working in push direction. It delivers 22.1 kN (4,970 lbf) at 5,000 psi. Stroke is 16 mm (0.62 in), maximum operating pressure is 700 bar (10,000 psi), weight is 0.8 kg and oil capacity is 10.16 cm³. The body is steel with a solid plunger. It is used in workholding fixtures and welding applications where compact dimensions and high pressure are required.

Features and Benefits

Block model
High pressure design (700 bar) for applications needing additional force
Compact design, well suited for welding applications
Collar mounting threads and base mounting holes for flexible mounting
Hardened saddle protects the plunger; snap-in design adapts to different plunger devices
Chrome plated plunger with bronze upper and lower bearing for long cylinder life

Enerpac RW50

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G3?8 - 18 mm (.375-18 in)

Oil Capacity (Advance)10,16 cm³ (0.62 in³)

Dimension V5,6 mm (0.22 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsPush

Minimum Operating Pressure40 bar (600 psi)

Product TypeWorkholding General Purpose Cylinder

Dimension L38,1 mm (1.5 in)

SeriesRW

Cylinder Capacity Advance at 5000 psi4970 lbs

Dimension A56,9 mm (2.24 in)

Product LineWorkholding Tools

Weight0,8 kg (1.8 lbs)

Dimension D158,9 mm (2.32 in)

Country of OriginChina

Max. Cylinder Capacity Range2,000 - 4,999 lbs

Dimension F25,4 mm (1 in)

Dimension D41,1 mm (1.62 in)

Cylinder Effective Area (Advance)6,39 cm² (0.99 in²)

Dimension U28,4 mm (1.12 in)

Dimension B41,4 mm (1.62 in)

Plunger TypeSolid

Cylinder MaterialSteel

Dimension H19,1 mm (0.75 in)

Stroke15.7 mm (0.62 in)

Cylinder Capacity at 350 bar (Advance)22,1 kN

Return TypeSingle-Acting, Spring Return

Operating Pressure600 - 10000 psi

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetParts Kits (Europe Only)PDF·176 KB·English

Repair Parts SheetCylinder - 5 TonPDF·58 KB·English

BrochureWorkholding Cylinders, EnglishPDF·4.2 MB

CAD Files 5

3D Model
