How can I get a price quote for Enerpac RW101?

You can request a fast quote for Enerpac RW101 from Yılsa Engineering. Reference part number CEY-937FC77C545C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RW101 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RW101 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RW101?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

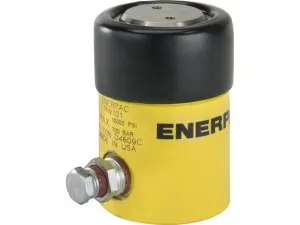

Enerpac RW101 49.7 kN 25 mm Hydraulic Cylinder

Enerpac RW101; 49.7 kN (11,180 lbf) capacity, 25 mm stroke, 350 bar, cylindrical single-acting spring-return general purpose workholding hydraulic cylinder.

EnerpacMFR # RW101SKU # CEY-937FC77C545C

Dimension C3.41 in

Maximum Operating Pressure350 bar (10,000 psi)

ApplicationsPush

Minimum Operating Pressure600 psi

Product TypeWorkholding General Purpose Cylinder

Dimension G.250-18 in

Have questions?Chat on WhatsApp

About This Product

RW101 is a general purpose hydraulic cylinder from the RW workholding series. It has a cylindrical body, works in push direction and is single-acting with spring return. It delivers 49.7 kN (11,180 lbf) at 5,000 psi (about 345 bar). Stroke is 25 mm (0.99 in), maximum operating pressure is 350 bar (10,000 psi), weight is 1.7 kg and oil capacity is 36.5 cm³. The body is steel with a solid plunger. It is used in workholding fixtures and welding applications where high clamping force is needed in a limited space.

Features and Benefits

Cylindrical model; single-acting with spring return
High pressure design (350 bar) for applications needing additional force
Long stroke in a compact design, well suited for welding applications
Collar mounting threads and base mounting holes for flexible mounting
Hardened saddle protects the plunger; snap-in design adapts to different plunger devices
Chrome plated plunger with bronze upper and lower bearing for long cylinder life

Enerpac RW101

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension C3.41 in

Maximum Operating Pressure350 bar (10,000 psi)

ApplicationsPush

Minimum Operating Pressure600 psi

Product TypeWorkholding General Purpose Cylinder

Dimension G.250-18 in

Dimension L1.15 in

SeriesRW

Dimension V.312-18 UNC in

Cylinder Capacity Advance at 5000 psi11180 lbs

Dimension A4.53 in

Product LineWorkholding Tools

Weight3.8 lbs

Dimension T0.24 in

Country of OriginChina

Max. Cylinder Capacity Range10,000 - 19,999 lbs

Dimension D2.25 in

Cylinder Effective Area (Advance)2.23 in²

Dimension B3.54 in

Plunger TypeSolid

Dimension Z0.49 in

Cylinder MaterialSteel

Dimension H0.75 in

Dimension F1.5 in

Dimension D12.250-14 UNS in

Stroke0.99 in

Dimension K#10-24 UNC in

Oil Capacity (Advance)2.23 in³

Return TypeSingle-Acting, Spring Return

Operating Pressure600 - 10000 psi

Dimension U1.56 in

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetRC10 & RW10 Series Hydraulic CylindersPDF·523 KB·English

Repair Parts SheetCylinders - RW-101, RW-102 & RW-106 (Standard & Viton Seals)PDF·37 KB·English

BrochureWorkholding Cylinders, EnglishPDF·4.2 MB

CAD Files 5

3D Model
