How can I get a price quote for Enerpac RRH6008?

You can request a fast quote for Enerpac RRH6008 from Yılsa Engineering. Reference part number YLSIENDOMRO1ZZN. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RRH6008 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RRH6008 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RRH6008?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

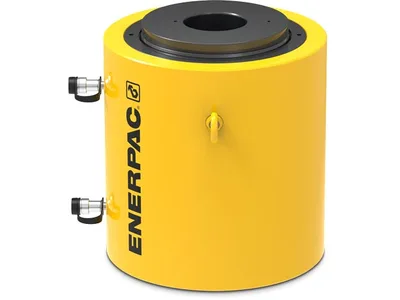

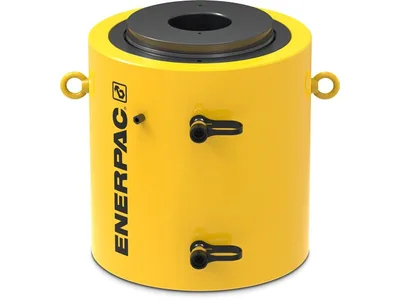

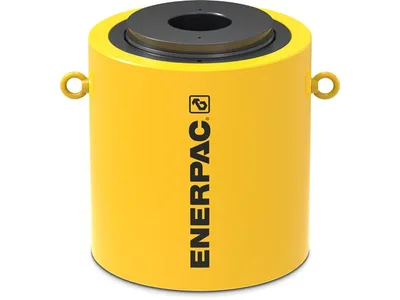

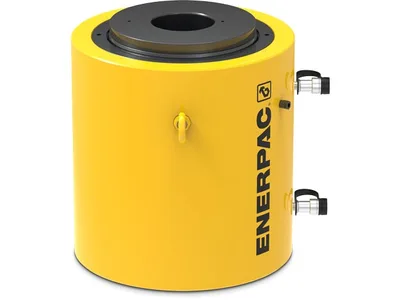

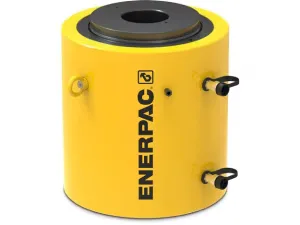

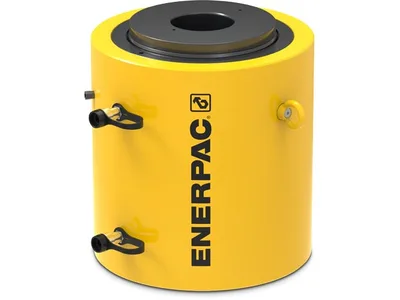

Enerpac RRH6008 660 ton Hollow Cylinder

Enerpac RRH6008; 660 ton class, 200 mm (7.87 in) stroke, 700 bar (10,000 psi), double-acting hollow plunger hydraulic cylinder.

EnerpacMFR # RRH6008SKU # YLSIENDOMRO1ZZN

Oil Capacity (Advance)16964 cm³ (1034.8 in³)

Base Mounting Holes Thread Depth Z36,0 mm (1.41 in)

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)5419 cm³ (330.57 in³)

ApplicationsLift, Lower, Push, Pull, Tension

Base Mounting Holes Thread V(4x) M24 x 3

Have questions?Chat on WhatsApp

About This Product

RRH6008 is a 660 ton class, 200 mm (7.87 in) stroke, double-acting hollow plunger hydraulic cylinder from the RRH series. At the maximum pressure of 700 bar (10,000 psi) it delivers 667 tons on advance and 213 tons (1896 kN) on retract. Cylinder bore is 370 mm, outside diameter is 480 mm, center hole diameter is 135 mm and saddle diameter is 315 mm. Oil capacity is 16964 cm³ on advance and 5419 cm³ on retract. Plunger internal thread is M190 x 2, base mounting holes are (4x) M24 x 3 (36 mm deep) and a CR400 coupler is used. Weight is approximately 610 kg. It is used for tensioning, testing, pulling and lifting in applications requiring high push and pull forces.

Features and Benefits

667 ton advance and 213 ton (1896 kN) retract capacity at 700 bar
Double-acting operation for controlled retraction
135 mm center hole and hollow plunger for push and pull applications
Relief valves protect against over-pressurization
Nickel-plated floating center tube and plunger wiper extend life
Baked enamel finish; CR-400 coupler and dust caps included

Enerpac RRH6008

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Oil Capacity (Advance)16964 cm³ (1034.8 in³)

Base Mounting Holes Thread Depth Z36,0 mm (1.41 in)

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)5419 cm³ (330.57 in³)

ApplicationsLift, Lower, Push, Pull, Tension

Base Mounting Holes Thread V(4x) M24 x 3

Maximum Cylinder Capacity (Advance)5937 kN (667 ton)

Outside Diameter D480 mm (18.9 in)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)370,0 mm (14.57 in)

Product TypeHollow Plunger Cylinder

SeriesRRH

Plunger Internal ThreadM190 x 2

Base to Advance Port H100 mm (3.94 in)

Model Type660 ton Capacity, 7.87 in Stroke

Max. Cylinder Retract Capacity213 ton

Product LineIndustrial Tools

Maximum Cylinder Capacity (Retract)1896 kN

Weight611 kg (1344 lbs)

Top to Retract Port (I)115 mm (4.53 in)

Plunger Internal Thread OM190 x 2

Saddle Diameter J315 mm (12.4 in)

Surface TreatmentPaint

Cylinder Class660 ton

Center Hole Diameter Y135,0 mm (5.31 in)

Saddle Diameter J1315 mm

Extended Height (B)725 mm (28.54 in)

Cylinder Effective Area (Advance)848,2 cm² (131.47 in²)

Cylinder Effective Area (Retract)271,0 cm²

Plunger TypeHollow

Cylinder Effective Area (Retract)42 in²

Collapsed Height (A)525 mm (20.67 in)

Cylinder MaterialSteel

Stroke200 mm (7.87 in)

Saddle Protrusion from Plunger K23 mm (0.91 in)

Saddle Protrusion from Plunger K123 mm

Plunger Thread Length (P)90 mm (3.54 in)

Return TypeDouble-Acting, Hydraulic Return

Plunger Diameter F320,0 mm (12.6 in)

Base Mounting Holes Bolt Circle U415,0 mm (16.27 in)

Documents & CAD

For this product 1

Repair Parts SheetRepair Parts Sheet - RRH2308, RRH4008, RRH6008 CylinderPDF·356 KB·English

Series documents 3· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

BrochureRRH-Series Hollow Plunger Cylinders; EnglishPDF·269 KB
