How can I get a price quote for Enerpac RRH4008?

You can request a fast quote for Enerpac RRH4008 from Yılsa Engineering. Reference part number YLSW9QTWBAZJBY6. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RRH4008 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RRH4008 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RRH4008?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

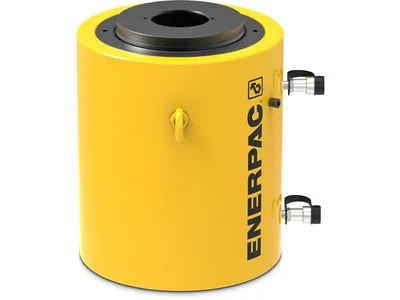

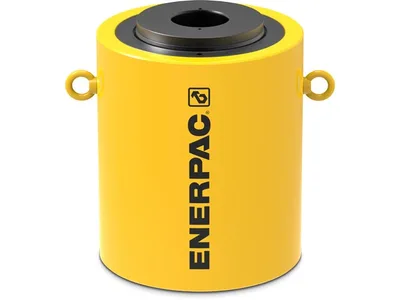

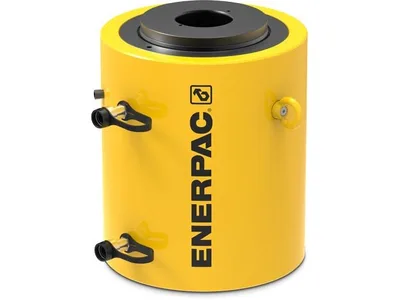

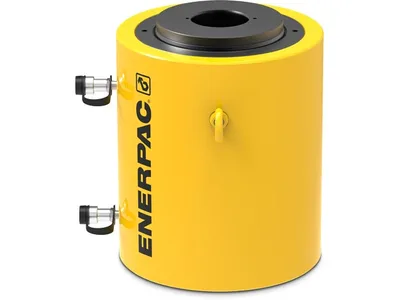

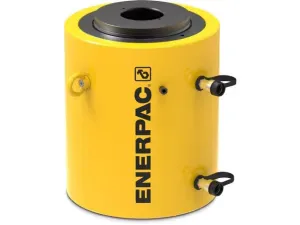

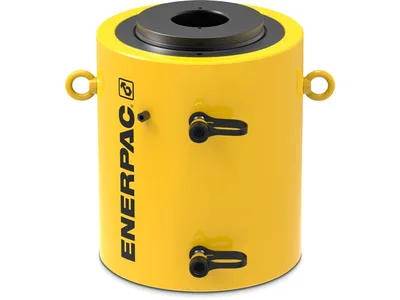

Enerpac RRH4008 450 ton Hollow Cylinder

Enerpac RRH4008; 450 ton class, 200 mm (7.87 in) stroke, 700 bar (10,000 psi), double-acting hollow plunger hydraulic cylinder.

EnerpacMFR # RRH4008SKU # YLSW9QTWBAZJBY6

Oil Capacity (Advance)11534 cm³ (703.5 in³)

Base Mounting Holes Thread Depth Z36,0 mm (1.41 in)

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)4795 cm³ (292.49 in³)

ApplicationsLift, Lower, Push, Pull, Tension

Base Mounting Holes Thread V(4x) M24 x 3

Have questions?Chat on WhatsApp

About This Product

RRH4008 is a 450 ton class, 200 mm (7.87 in) stroke, double-acting hollow plunger hydraulic cylinder from the RRH series. At the maximum pressure of 700 bar (10,000 psi) it delivers 453 tons on advance and 188 tons (1678 kN) on retract. Cylinder bore is 305 mm, outside diameter is 400 mm, center hole diameter is 110 mm and saddle diameter is 245 mm. Oil capacity is 11534 cm³ on advance and 4795 cm³ on retract. Plunger internal thread is M160 x 2, base mounting holes are (4x) M24 x 3 (36 mm deep) and a CR400 coupler is used. Weight is approximately 382 kg. It is used for tensioning, testing, pulling and lifting in heavy applications requiring both push and pull forces.

Features and Benefits

453 ton advance and 188 ton (1678 kN) retract capacity at 700 bar
Double-acting operation for controlled retraction
110 mm center hole and hollow plunger for push and pull applications
Relief valves protect against over-pressurization
Nickel-plated floating center tube and plunger wiper extend life
Baked enamel finish; CR-400 coupler and dust caps included

Enerpac RRH4008

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Oil Capacity (Advance)11534 cm³ (703.5 in³)

Base Mounting Holes Thread Depth Z36,0 mm (1.41 in)

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)4795 cm³ (292.49 in³)

ApplicationsLift, Lower, Push, Pull, Tension

Base Mounting Holes Thread V(4x) M24 x 3

Maximum Cylinder Capacity (Advance)4036 kN (453 ton)

Outside Diameter D400 mm (15.75 in)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)305,0 mm (12.01 in)

Product TypeHollow Plunger Cylinder

SeriesRRH

Plunger Internal ThreadM160 x 2

Base to Advance Port H80 mm (3.15 in)

Model Type450 ton Capacity, 7.87 in Stroke

Max. Cylinder Retract Capacity188 ton

Product LineIndustrial Tools

Maximum Cylinder Capacity (Retract)1678 kN

Weight383 kg (843 lbs)

Top to Retract Port (I)111 mm (4.37 in)

Plunger Internal Thread OM160 x 2

Saddle Diameter J245 mm (9.65 in)

Surface TreatmentPaint

Cylinder Class450 ton

Center Hole Diameter Y110,0 mm (4.33 in)

Saddle Diameter J1245 mm

Extended Height (B)686 mm (27.01 in)

Cylinder Effective Area (Advance)576,7 cm² (89.39 in²)

Cylinder Effective Area (Retract)239,7 cm²

Plunger TypeHollow

Cylinder Effective Area (Retract)37.15 in²

Collapsed Height (A)486 mm (19.13 in)

Cylinder MaterialSteel

Stroke200 mm (7.87 in)

Saddle Protrusion from Plunger K18 mm (0.71 in)

Saddle Protrusion from Plunger K118 mm

Plunger Thread Length (P)70 mm (2.76 in)

Return TypeDouble-Acting, Hydraulic Return

Plunger Diameter F250,0 mm (9.84 in)

Base Mounting Holes Bolt Circle U340,0 mm (13.33 in)

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetRepair Parts Sheet - RRH2308, RRH4008, RRH6008 CylinderPDF·356 KB·English

BrochureRRH-Series Hollow Plunger Cylinders; EnglishPDF·269 KB

CAD Files 2

3D Model
