How can I get a price quote for Enerpac RRH2308?

You can request a fast quote for Enerpac RRH2308 from Yılsa Engineering. Reference part number YLS9ZFKYFTWTSPX. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RRH2308 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RRH2308 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RRH2308?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

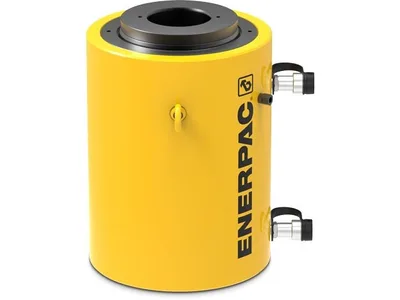

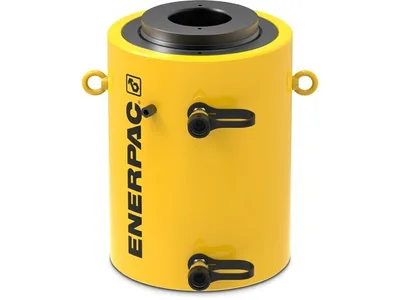

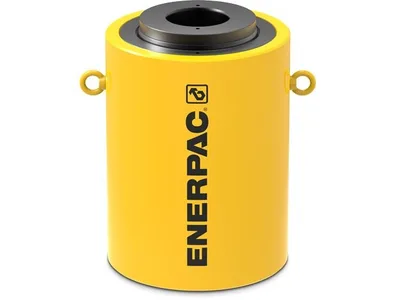

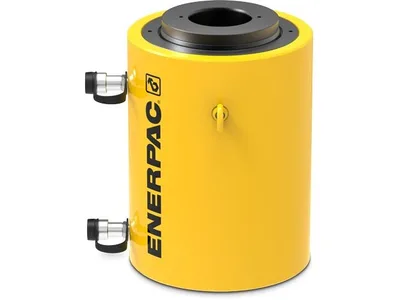

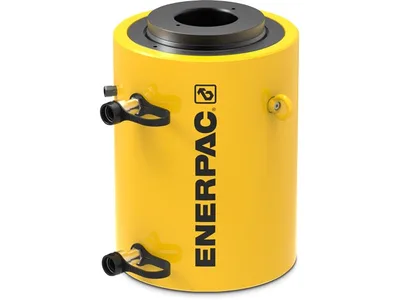

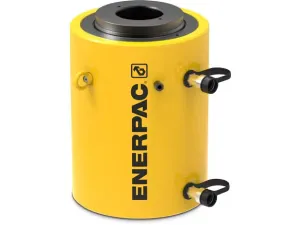

Enerpac RRH2308 240 ton Hollow Cylinder

Enerpac RRH2308; 240 ton class, 200 mm (7.87 in) stroke, 700 bar (10,000 psi), double-acting hollow plunger hydraulic cylinder.

EnerpacMFR # RRH2308SKU # YLS9ZFKYFTWTSPX

Oil Capacity (Advance)6185 cm³ (377.3 in³)

Base Mounting Holes Thread Depth Z25,0 mm (0.98 in)

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)2764 cm³ (168.6 in³)

ApplicationsLift, Lower, Push, Pull, Tension

Base Mounting Holes Thread V(4x) M16 x 2

Have questions?Chat on WhatsApp

About This Product

RRH2308 is a 240 ton class, 200 mm (7.87 in) stroke, double-acting hollow plunger hydraulic cylinder from the RRH series. At the maximum operating pressure of 700 bar (10,000 psi) it delivers 243 tons on advance and 108 tons (967 kN) on retract. Cylinder bore is 240 mm, outside diameter is 310 mm, center hole diameter is 105 mm and saddle diameter is 195 mm. Oil capacity is 6185 cm³ on advance and 2764 cm³ on retract. Plunger internal thread is M150 x 2, base mounting holes are (4x) M16 x 2 (25 mm deep) and a CR400 coupler is used. Weight is approximately 190 kg. It is suited to tensioning, testing, pulling and lifting applications where both push and pull forces are required.

Features and Benefits

243 ton advance and 108 ton (967 kN) retract capacity at 700 bar
Double-acting operation for controlled retraction
105 mm center hole and hollow plunger for push and pull applications
Relief valves protect against over-pressurization
Nickel-plated floating center tube and plunger wiper extend life
Baked enamel finish; CR-400 coupler and dust caps included

Enerpac RRH2308

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Oil Capacity (Advance)6185 cm³ (377.3 in³)

Base Mounting Holes Thread Depth Z25,0 mm (0.98 in)

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)2764 cm³ (168.6 in³)

ApplicationsLift, Lower, Push, Pull, Tension

Base Mounting Holes Thread V(4x) M16 x 2

Maximum Cylinder Capacity (Advance)2164 kN (243 ton)

Outside Diameter D310 mm (12.2 in)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)240,0 mm (9.45 in)

Product TypeHollow Plunger Cylinder

SeriesRRH

Plunger Internal ThreadM150 x 2

Base to Advance Port H50 mm (1.97 in)

Model Type240 ton Capacity, 7.87 in Stroke

Max. Cylinder Retract Capacity108 ton

Product LineIndustrial Tools

Maximum Cylinder Capacity (Retract)967 kN

Weight190 kg (418 lbs)

Top to Retract Port (I)91 mm (3.58 in)

Plunger Internal Thread OM150 x 2

Saddle Diameter J195 mm (7.68 in)

Surface TreatmentPaint

Cylinder Class240 ton

Center Hole Diameter Y105,0 mm (4.13 in)

Saddle Diameter J1195 mm

Extended Height (B)631 mm (24.84 in)

Cylinder Effective Area (Advance)309,3 cm² (47.94 in²)

Cylinder Effective Area (Retract)138,2 cm²

Plunger TypeHollow

Cylinder Effective Area (Retract)21.42 in²

Collapsed Height (A)431 mm (16.97 in)

Cylinder MaterialSteel

Stroke200 mm (7.87 in)

Saddle Protrusion from Plunger K18 mm (0.71 in)

Saddle Protrusion from Plunger K118 mm

Plunger Thread Length (P)50 mm (1.97 in)

Return TypeDouble-Acting, Hydraulic Return

Plunger Diameter F220,0 mm (8.66 in)

Base Mounting Holes Bolt Circle U260,0 mm (10.2 in)

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

Repair Parts SheetRepair Parts Sheet - RRH2308, RRH4008, RRH6008 CylinderPDF·356 KB·English

BrochureRRH-Series Hollow Plunger Cylinders; EnglishPDF·269 KB

CAD Files 2

3D Model
