Enerpac RR20018 221 ton Hydraulic Cylinder

Enerpac RR20018; 221 ton capacity, 457 mm stroke, double-acting general purpose hydraulic cylinder with hydraulic return.

EnerpacMFR # RR20018SKU # YLSKIMB4LOZGRF8

Cylinder Class200 ton

Stroke457 mm (18 in)

Collapsed Height (A)765 mm (30.13 in)

Outside Diameter D247 mm (9.75 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U127 mm (5 in)

Have questions?Chat on WhatsApp

About This Product

RR20018 is a double-acting general purpose hydraulic cylinder from the RR series. It offers 221 ton capacity and 457 mm (18 in) stroke; the plunger is driven hydraulically in both directions. Collapsed height is 765 mm, outside diameter is 247 mm and weight is 204 kg. Base mounting holes sit on a 127 mm bolt circle and the collar thread is 9 3/4" - 12. It has a painted finish and includes a CR400 coupler. It is used in construction and manufacturing applications where a load must be lifted or pushed over a longer distance.

Features and Benefits

457 mm stroke for greater travel
Collar and plunger threads for easy fixturing
Baked enamel finish for increased corrosion resistance
Built-in safety valve prevents over-pressurization
Plunger wiper reduces contamination and extends cylinder life
CR400 coupler included

Enerpac RR20018

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class200 ton

Stroke457 mm (18 in)

Collapsed Height (A)765 mm (30.13 in)

Outside Diameter D247 mm (9.75 in)

Return TypeDouble-Acting, Hydraulic Return

Base Mounting Holes Bolt Circle U127 mm (5 in)

Collar Thread (W)9 3/4" - 12 (9¾”- 12)

Surface TreatmentPaint

Weight204 kg (450 lbs)

Oil Capacity (Advance)13025 cm³ (795.85 in³)

Base Mounting Holes Thread Depth Z25 mm (1 in)

Maximum Operating Pressure700 bar (10,000 psi)

Oil Capacity (Retract)6640 cm³ (396 in³)

ApplicationsLift, Lower, Push, Pull

Base Mounting Holes Thread V1”- 8

Maximum Cylinder Capacity (Advance)1995 kN (221 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)190,5 mm (7.5 in)

Product TypeGeneral Purpose Cylinder

SeriesRR

Plunger Internal Thread2 1/2" - 12

Base to Advance Port H85 mm (3.38 in)

Model Type221 Ton Capacity, 18 in. Stroke

Max. Cylinder Retract Capacity112.5 ton

Product LineIndustrial Tools

Top to Retract Port (I)101 mm (4 in)

Plunger Internal Thread O2 1/2"- 12

Saddle Diameter J133 mm (5.25 in)

Country of OriginChina

Collar Thread Length (X)54 mm (2.13 in)

Saddle Diameter J1133 mm

Extended Height (B)1222 mm (48.13 in)

Cylinder Effective Area (Advance)285,0 cm² (44.21 in²)

Cylinder Effective Area (Retract)145,3 cm²

Plunger TypeSolid

Cylinder Effective Area (Retract)22.5 in²

Cylinder MaterialSteel

Saddle Protrusion from Plunger K22 mm (0.88 in)

Saddle Protrusion from Plunger K122 mm

Plunger Thread Length (P)63 mm (2.5 in)

Plunger Diameter F133,4 mm (5.25 in)

Documents & CAD

For this product 1

Repair Parts SheetCylinders - RR-20018, 20024, 20036, 20048PDF·69 KB·English

Series documents 3· shared by this product series

Instruction ManualHydraulic CylinderPDF·271 KB

Instruction ManualHydraulic CylinderPDF·3.7 MB 4 languages· in one file

BrochureRR-Series Cylinders Double-Acting Long Stroke; EnglishPDF·409 KB

CAD Files 3

3D Model

Alternative Names & Search Terms

RR20018RR-20018RR 20018Enerpac RR20018Enerpac RR-20018Enerpac RR 20018RR20018 hydraulic cylinderRR20018 double-acting cylinderEnerpac RR seriesEnerpac RR series hydraulic cylinderRR series general purpose cylinder221 ton hydraulic cylinder200 ton double-acting hydraulic cylinder457 mm stroke double-acting cylinder18 inch stroke hydraulic cylinderhydraulic return cylinderEnerpac 200 ton cylinder

Cookie Notice

Enerpac RR20018 221 ton Hydraulic Cylinder

About This Product

Features and Benefits

Enerpac RR20018

Specifications

Documents & CAD

For this product 1

Series documents 3· shared by this product series

CAD Files 3

Related Products

Enerpac AMGC42 700 bar Split Flow Manifold

Enerpac HF102 5 Gal (20 L) Hydraulic Oil

Enerpac ZA4440MX 700 bar Air Hydraulic Pump

Enerpac ZU4440SB 700 bar Electric Hydraulic Pump

Enerpac ZE5440SW 700 bar Electric Pump

Enerpac HC9308 2.4 m Hydraulic Hose

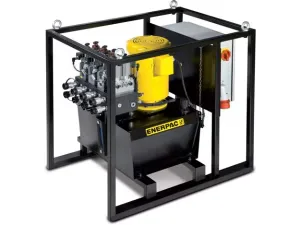

Enerpac SFP404SW 700 bar Split Flow Pump

Enerpac RR20048K cylinder repair kit

Enerpac CB804045 200 Ton Saddle

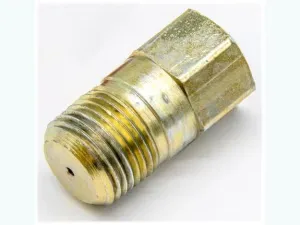

Enerpac CJ160900W Relief Valve Assembly
