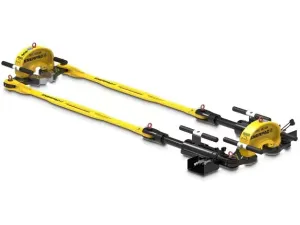

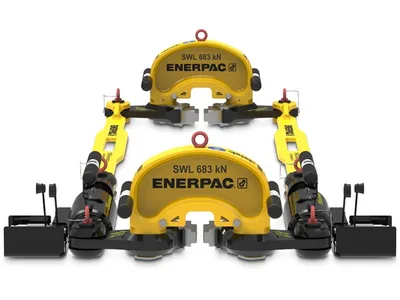

Enerpac RP70A 70 ton Hydraulic Rail Stressor

Enerpac RP70A; 70 ton (683 kN) pull capacity, 205 mm stroke, lightweight hydraulic rail stressor for stressing railway track.

EnerpacMFR # RP70ASKU # YLSPCQ5AV0M0EQH

Push Capacity440 kN (35 ton)

Country of OriginNetherlands

Length2950 mm (116.1 in)

Pull Capacity683 kN (70 ton)

Capacity683 kN (70 ton)

Stroke205 mm

Have questions?Chat on WhatsApp

About This Product

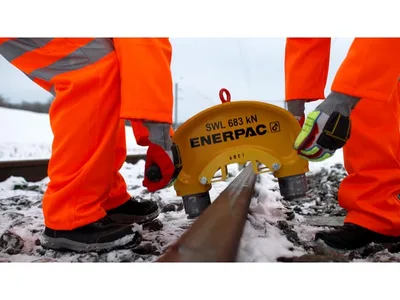

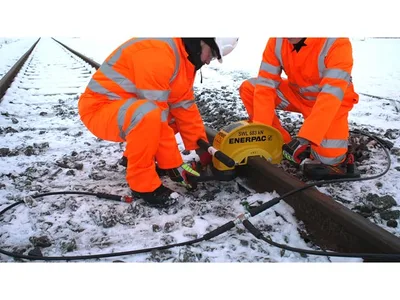

RP70A is a lightweight hydraulic rail stressor designed for railway maintenance crews. It has a pull capacity of 70 tons (683 kN), a push capacity of 35 tons (440 kN), a stroke of 205 mm, a maximum operating pressure of 8,400 psi and a weight of 205 kg. Its country of origin is the Netherlands. The unit pulls heavy railroad tracks together for stressing and thermite welding and adjusts the gap between rail ends. It is used for rail welding, repairing rail failures and servicing insulators. Aluminium cylinders with rod sleeves protect against weld splatter. It assembles as a modular kit without tools. It can be used with the battery-powered pump and an optional transportation and storage frame, and is interchangeable with other types of powerpacks. It holds Network Rail Certificate of Acceptance PA05-06958.

Features and Benefits

Lightweight: 25% lighter than previous models, 19% lighter than the competition

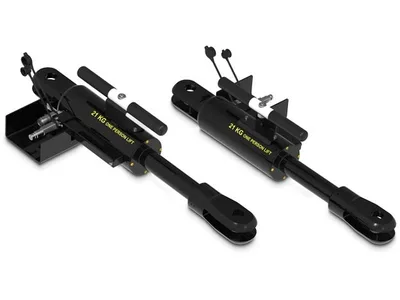

Aluminium cylinders with rod sleeves protect against weld splatter and extend unit life

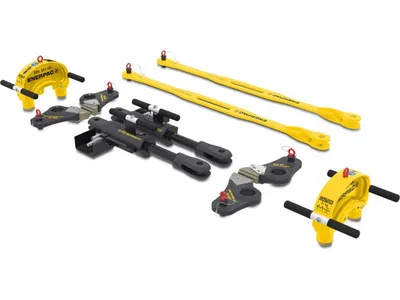

Intuitive modular kit without tools; easy and safe to assemble
Paired with the cordless ZC pump for a zero-emission stressing solution
70 ton (683 kN) pull and 35 ton (440 kN) push capacity
Network Rail Certificate of Acceptance PA05-06958

Enerpac RP70A

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Push Capacity440 kN (35 ton)

Country of OriginNetherlands

Length2950 mm (116.1 in)

Pull Capacity683 kN (70 ton)

Capacity683 kN (70 ton)

Stroke205 mm

ApplicationsPull

Dimension D361 mm

Product LineIndustrial Tools

Height361 mm (14.2 in)

Weight205 kg (452 lbs)

Dimension C1056 mm

Product TypeRail Stressor

Dimension B3155 mm

Width1056 mm (41.6 in)

Dimension A2950 mm

Maximum Operating Pressure8400 psi

SeriesRP

Documents & CAD

For this product 1

Instruction ManualRP70A Hydraulic Rail Puller/Stressor (units manufactured November 2022 and later)PDF·6.5 MB

Series documents 8· shared by this product series

BrochureRP-Series Hydraulic Rail Stressor; EnglishPDF·409 KB

BrochureRP-Series_Hydraulic_Rail_Stressor_ES-LA (ES-LA)PDF·411 KB·Español

BrochureRP-Series_Hydraulic_Rail_Stressor_PT-BR (PT-BR)PDF·410 KB·Português

BrochureRP-Series_Hydraulic_Rail_Stressor_PT-BR (PT-BR)PDF·829 KB·Português

BrochureRP-Series_Hydraulic_Rail_Stressor_ES-LA (ES-LA)PDF·828 KB·Español

BrochureRP-Series_Hydraulic_Rail_Stressor_ZHPDF·916 KB·中文

BrochureRP-Series_Hydraulic_Rail_Stressor_KOPDF·878 KB·한국어

BrochureRP-Series_Hydraulic_Rail_Stressor_JAPDF·906 KB·日本語
