Enerpac RLR1006 100 ton Hydraulic Cylinder

Enerpac RLR1006; 100 ton (889.6 kN) capacity, 152.4 mm (6 in) stroke, 700 bar (10,000 psi) maximum operating pressure, single-acting general purpose hydraulic cylinder.

EnerpacMFR # RLR1006SKU # YLSJR1X7TGZJOJJ

Required Oil Capacity1933,7 cm³ (118.0 in³)

Ram Bore Diameter127 mm (5 in)

Maximum Operating Pressure700 bar (10,000 psi)

Product TypeGeneral Purpose Cylinder

SeriesRLR - discontinued

Pressure at Capacity703 bar (10200 psi)

Have questions?Chat on WhatsApp

About This Product

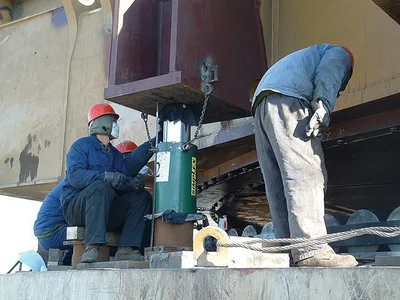

RLR1006 is a single-acting general purpose hydraulic cylinder from the RLR series, with 100 ton (889.6 kN) capacity and 152.4 mm (6 in) stroke. Maximum operating pressure is 700 bar (10,000 psi); the body is steel and the plunger is solid. Ram bore diameter is 127 mm, piston outside diameter 85.9 mm, body outside diameter 162.1 mm, effective area 126.6 cm² and required oil capacity 1933.7 cm³. Collapsed height is 268.2 mm, extended height 420.6 mm and weight is approximately 40.8 kg (90 lb). Country of origin is listed as the United States. It is suitable for industrial lifting, pressing and positioning applications. The RLR series is listed as discontinued by the manufacturer.

Features and Benefits

100 ton (889.6 kN) capacity at 700 bar (10,000 psi) maximum pressure
Large bearings resist side load
Plated piston resists scoring and corrosion
Stop ring provides piston blow-out protection
Swivel eye bolts are used on 100 ton and up; 5 degree swivel load caps on 30-100 ton models help stabilize the load
Custom strokes and capacities up to 1,500 tons (13345 kN) available by contacting the factory

Enerpac RLR1006

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Required Oil Capacity1933,7 cm³ (118.0 in³)

Ram Bore Diameter127 mm (5 in)

Maximum Operating Pressure700 bar (10,000 psi)

Product TypeGeneral Purpose Cylinder

SeriesRLR - discontinued

Pressure at Capacity703 bar (10200 psi)

Product LineHydraulic Tools

Weight40,8 kg (90.0 lbs)

Cylinder Class100 ton

Country of OriginUnited States

Base to Port Centerline (E)31,8 mm (1.25 in)

Body Outside Diameter (C)162,1 mm (6.38 in)

Cylinder Effective Area126,6 cm² (19.63 in²)

Extended Height (B)420,6 mm (16.56 in)

Capacity889,6 kN (100 ton)

Plunger TypeSolid

Collapsed Height (A)268.2 mm (10.56 in)

Cylinder MaterialSteel

Piston Outside Diameter (D)85,9 mm (3.38 in)

Stroke152.4 mm (6.00 in)

Return TypeSingle-Acting, Load Return
