How can I get a price quote for Enerpac RLN1006?

You can request a fast quote for Enerpac RLN1006 from Yılsa Engineering. Reference part number YLS6RDQULSQRSEY. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RLN1006 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RLN1006 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RLN1006?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

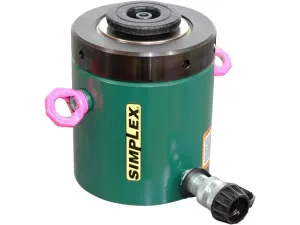

Enerpac RLN1006 100 ton Locknut Cylinder

Enerpac RLN1006; 100 ton (889.6 kN) capacity, 152.4 mm stroke, 700 bar (10,000 psi) operating pressure, single-acting steel locknut hydraulic cylinder.

EnerpacMFR # RLN1006SKU # YLS6RDQULSQRSEY

Required Oil Capacity1933,7 cm³ (118.0 in³)

Ram Bore Diameter127 mm (5 in)

Maximum Operating Pressure700 bar (10,000 psi)

Product TypeLocknut Cylinder

SeriesRLN - discontinued

Pressure at Capacity703 bar (10200 psi)

Have questions?Chat on WhatsApp

About This Product

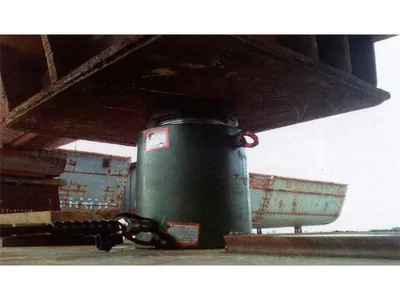

RLN1006 is a single-acting, steel-bodied locknut hydraulic cylinder from the RLN series. It offers 100 ton (889.6 kN) capacity and a 152.4 mm stroke; maximum operating pressure is 700 bar (10,000 psi), with 703 bar at rated capacity. The plunger is solid. Collapsed height is 304.8 mm and extended height is 457.2 mm. Piston outside diameter is 109.5 mm, body outside diameter is 162.1 mm, effective area is 126.6 cm² and required oil capacity is 1933.7 cm³. Weight is approximately 59.9 kg (132 lb) and country of origin is the United States. The locknut provides extended load holding. It is used in heavy lifting, positioning and industrial applications where the load must be mechanically held.

Features and Benefits

Lock nuts offer extended load holding
Stop ring protects against piston blow-out
5° swivel load cap on 30–100 ton models protects against side loads
Class 2 ACME thread offers high strength and easy locknut positioning
Swivel eye bolts are used on 100 ton and larger models
700 bar (10,000 psi) maximum operating pressure

Enerpac RLN1006

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Required Oil Capacity1933,7 cm³ (118.0 in³)

Ram Bore Diameter127 mm (5 in)

Maximum Operating Pressure700 bar (10,000 psi)

Product TypeLocknut Cylinder

SeriesRLN - discontinued

Pressure at Capacity703 bar (10200 psi)

Product LineHydraulic Tools

Weight59,9 kg (132.0 lbs)

Cylinder Class100 ton

Country of OriginUnited States

Base to Port Centerline (E)31,8 mm (1.25 in)

Body Outside Diameter (C)162,1 mm (6.38 in)

Cylinder Effective Area126,6 cm² (19.63 in²)

Extended Height (B)457,2 mm (18 in)

Capacity889,6 kN (100 ton)

Plunger TypeSolid

Collapsed Height (A)304.8 mm (12 in)

Cylinder MaterialSteel

Piston Outside Diameter (D)109,5 mm (4.31 in)

Stroke152.4 mm (6.00 in)

Return TypeSingle-Acting, Load Return
